Description

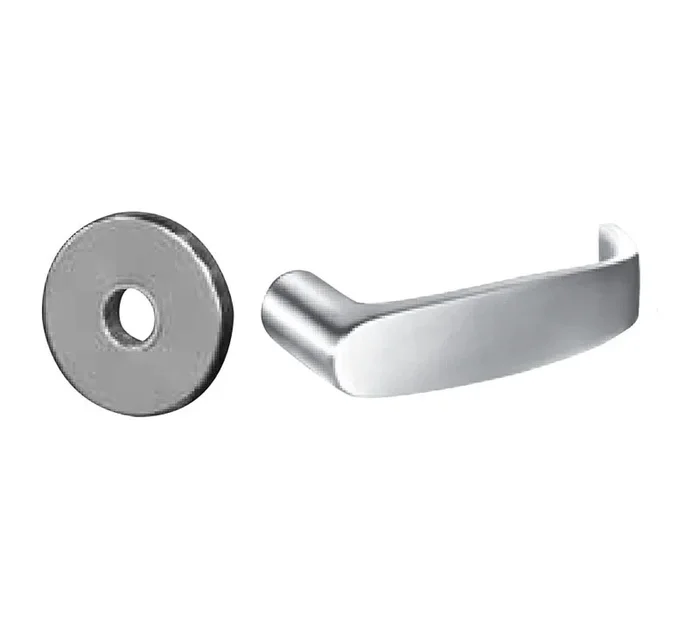

Sargent 8266 LNL 4 Gr1 Privacy Deadbolt
Sargent 8266 LNL 4 Gr1 Privacy with Deadbolt offers a reliable Grade 1 privacy solution for bath and bedroom applications. This mortise lock features a robust L-lever design with an LN rose, ensuring both functionality and aesthetic appeal. Engineered to meet ANSI/BHMA Grade 2 certification, it exceeds rigorous cycle and strength standards, making it a top choice for high-traffic areas. Constructed with premium materials, the Sargent 8266 is UL-cUL listed for three-hour fire doors and windstorm applications, enhancing safety in diverse environments. The thru-bolted lever trim and reinforced cylinder retainer ensure longevity and security, while the lock is field reversible for easy installation on various door thicknesses (1-3/4 inches). With a selection of 58 different functions, including electromechanical and security options, it caters to a wide range of needs. The lock is available in six lever designs, two rose styles, and 14 architectural finishes, providing flexibility to match any interior décor. Additionally, it includes a 10-year limited warranty, underscoring Sargent’s commitment to quality. In summary, the Sargent 8266 LNL 4 Gr1 Privacy with Deadbolt combines strength, style, and security, making it an ideal choice for offices, hospitals, schools, and more.
Gr1 Privacy with Deadbolt
Grade 1 Privacy Bath/Bedroom Mortise Lock, L – Lever, LN – Rose, Field Reversible, ASA Strike, Satin Brass
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F19 – Privacy/Bed/Bath
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch, 1 in. Deadbolt
Country of origin: USA
Door Thickness: 1-3/4 In.
Finish: 606/US4
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 66-Privacy Bath/Bedroom
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: L – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Roseescutcheon Design: LN – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Combination Latch and Bolt
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
