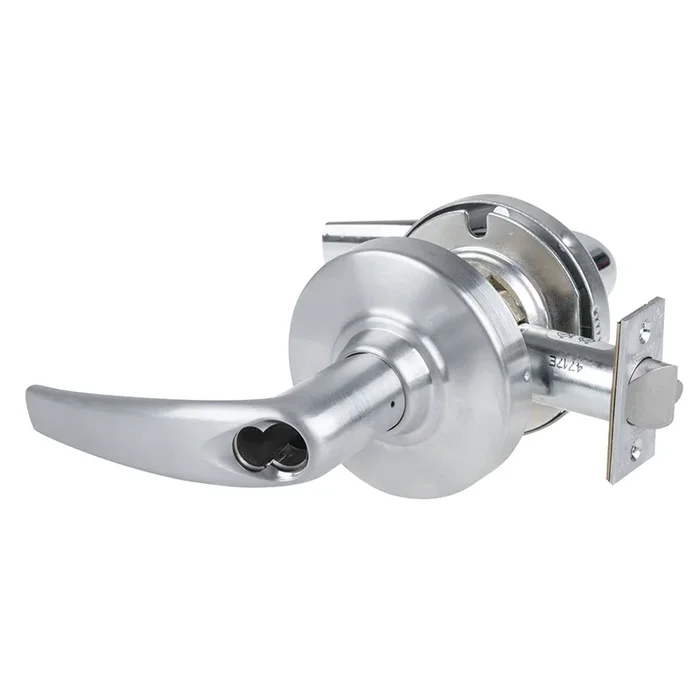

Schlage ND96BDEU ATH 626 Gr1 Vandlgard Storage Fail-Secure Instructions
Schlage ND96BDEU ATH 626 Gr1 Vandlgard Storerm,Fail Sec is a Grade 1 electrified cylindrical lock designed for high-security applications, particularly in storerooms. Featuring a storeroom function with Vandlgard technology, this lock operates on 12-24V DC and is configured as fail secure, ensuring reliable performance. With a backset of 2-3/4″ and the elegant Athens lever design, it combines functionality with style, making it suitable for commercial environments. The ND Series locks are UL Listed and provide both fire and electrical single-point locking on labeled doors, enhancing safety and security. They are particularly advantageous in high-traffic areas where continuous operation is vital. The auto-detecting input allows for versatility in installation, accommodating both EL and EU operation. Additional features include a low maximum current draw of 0.23 amps, which allows for the connection of multiple locks to a single power supply. The modular Request to Exit (RX) feature offers flexibility, and the lock is inventory friendly, supporting various functions with a single model. With robust construction and a satin chrome finish, the Schlage ND96BDEU is an ideal choice for new constructions and retrofitting, ensuring both security and aesthetic appeal.
Gr1 Vandlgard Storerm,Fail Sec
Grade 1 Electrified Cylindrical Lock, Storeroom Function with Vandlgard, 12-24V DC, Fail Secure, 2-3/4″ Backset, Athens Lever, SFIC Prep, Satin Chrome
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
Applications
The electrified ND is ideally used in:
- High traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates “hot levers” in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Attributes
Manufacturer surcharge: 4.5%
Amp Draw: 0.23
Application: Storeroom Lever
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″ to 2″
Dust Box: None
Finish: 626/US26D
Function: 96EU-Fail Secure
Grade: Grade 1
Installation: Commercial
Latch Backset Dim: 2-3/4″
Leverknob Design: ATH – Athens
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ X 1-1/8″
Operating Voltage: 12VDC/24VDC
Origin: Mexico
Pack Height 2: 10″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Width 2: 14.63″
Pbs Options: ‘4540301,4541421
Power: Hard Wired
Product Height: 4.75″
Product Length: 9.5″
Product Width: 8.25″
Roseescutcheon Design: 3-7/16″ Diameter
Screws: Combination
Series: ND Series Electrified Lever Locks
Ship Weight: 5 lbs.
Std Latch Number: 14-047
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: None
Type: Electric Locks
