Description

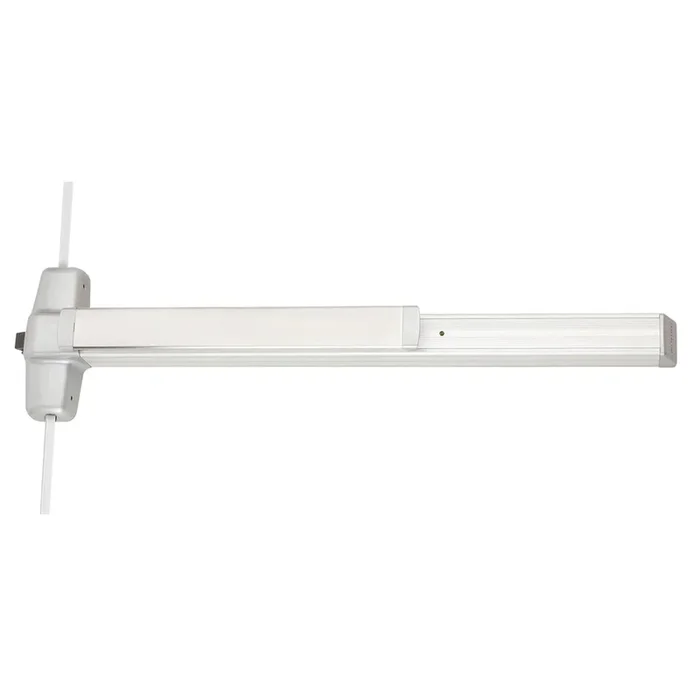

Von Duprin 9957EO 3 26D ALK Grade 1 3-Point Exit Device, Finish 626
Von Duprin 9957EO 3 26D ALK Grade 1 3Pt Exit Device 626 offers a robust and efficient solution for high-traffic areas requiring reliable emergency exits. This Grade 1 three-point exit bar is specifically designed for 36-inch devices fitting 84-inch door heights, making it a versatile choice for various commercial settings. Its battery-powered alarm kit enhances security, ensuring that unauthorized exits are promptly detected. Constructed for durability, the 9957 Series is UL listed for panic exit hardware and compatible with stock hollow metal doors featuring 86 or 161 cutouts. The device boasts a non-handed design, allowing for easy installation and field reversibility, adaptable to your specific needs. The hex dogging feature ensures reliable and secure operation, while the deadlocking anti-friction latch bolts provide an added layer of security with a 5/8″ throw. Designed to withstand daily use, the device includes vertical rods and latch guards, safeguarding against impacts from carts or gurneys. With a sleek satin chrome finish, it not only performs reliably but also complements the aesthetic of modern commercial environments. Choose the Von Duprin 9957EO for a dependable exit solution that prioritizes safety and functionality in your building’s emergency egress system.
Grade 1 3Pt Exit Device 626
Grade 1 3 Point Exit Bar, 36″ Device, 84″ Door Height, Exit Only, Battery Powered Alarm Kit, Hex Dogging, Satin Chrome Finish, Field Reversible
9857/9957 Three-point latching device for all types of single or double doors, UL listed for panicexit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod andlatch guards are available to protect the bottom rod of the exit device from damage by impactsof carts or gurneys passing through doors.
The 9957 Series covers stock hollow metal doors with 86 or 161 cutouts.
The 9957 Series by Von Duprin has a grooved case and is UL listed for panic exit hardware.The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 3913/16″ (1011 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw Deadlocking rim bolt, 3 /4″ (19mm) throw
- Door undercut: 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2008
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: 3 Point
Dogging Options: Hex Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Electric Options: Battery Powered Alarm Kit
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9957 Series 3-Point Locking Exit Device
Ship Weight: 17 lbs.
Strike Bottom: 304L
Strike Standard: 299
Subtype: Alarmed Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
