Description

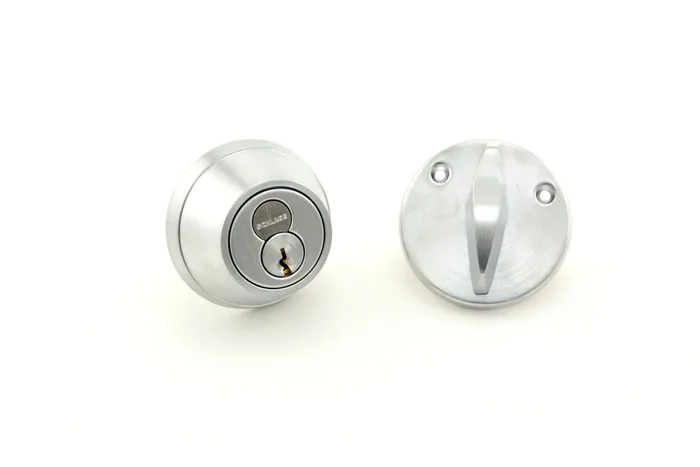

Schlage B663R626 Grade 1 Classroom Deadbolt, Large Format Core, Satin Chrome Finish
Schlage Commercial B663R626 Grade 1 Classroom Deadbolt with Large Format Interchangeable Core C Keyway combines robust security with practical functionality. Designed for a variety of settings, this classroom deadbolt allows for key access from the outside while featuring an inside turn unit that retracts the bolt only, enhancing safety in educational environments. This deadbolt is ANSI Certified (A156.36) and built to meet the highest standards of durability and performance, making it an ideal choice for commercial applications. It accommodates door thicknesses ranging from 1-5/8″ to 2″ and is compatible with adjustable backsets of 2-3/8″ or 2-3/4″. The satin chrome finish not only offers a sleek aesthetic but also provides resistance to wear, ensuring a long-lasting appearance. The B663R626 is UL Listed for 3-hour fire doors, adding an essential layer of protection for life safety. It features a 6-pin cylinder for enhanced security and is constructed with a sturdy zinc base material. With a limited 3-year mechanical warranty, you can trust in its reliability for your commercial needs. Upgrade your door hardware with the Schlage Commercial B663R626, where strength and functionality meet.
Grade 1 Classroom Deadbolt with Large Format Interchangeable Core C Keyway with 12296 Latch and 10094 Strike Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Commercial Grade 1
- 1-5/8″ to 2″ Door Range
- UL Listed for 3 Hour Fire Door
- Classroom Deadbolt – Deadbolt Thrown or Retracted by Key Outside, Inside Turn Unit Will Retract Bolt Only
- ANSI Certified A156.36
Attributes
Backset: Adjustable 2-3/8″ or 2-3/4″ Backset
Category: Mechanical Commercial Locksets
Crossbore Size: 1-1/2″ or 2-1/8″ Bore
Dimension: 2-5/8″ Diameter
Door Range: 1-5/8″ to 2″
Door Thickness: 1-5/8″ to 2″
Finish: Satin Chrome
Finish Code: 626
Function: Classroom Deadbolt
Hazardous Material: NO
Keyway: C Keyway
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Order_ Qty: 1
PO date: 2024-09-29
Series: B600 Series
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8″ x 2-3/4″
Subcategory: Commercial Deadbolts
Subtype: Commercial Deadbolts
Type: Mechanical Commercial Locksets
Ul Listing Type: UL Listed for 3 Hour Fire Door
Upc: 067849910174
