Description

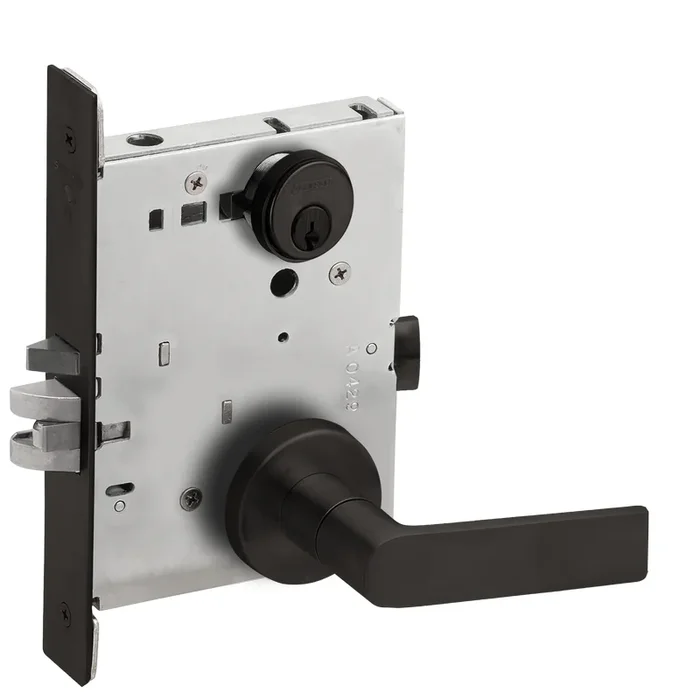

Schlage L9070P 01A 622 Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Classroom – Latchbolt Retracted from Either Side, Locked or Unlocked by Outside Key Only, Inside Always Free for Immediate Exit
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 – Classroom
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch
Burglar Rated: No
Cam Number: L583-254
Cam Type: Schlage L
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Design: 01 Lever and A Rose
Door Thickness: 1.75
Dust Box: K510-066
Finish: 622/US19
Finish : Flat Black Coated
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Lever Knob Design: 01 – Lever
Leverknob Design: 01 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 1.25
Num Of Keys: 2
Of Keys: 2
Origin: Mexico
Pack Height: 5.63″
Pack Length: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Width: 5.38″
Pins: 6
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 2.668″
Rose Escutcheon Design: A – Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″
Screws: C203-736
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Keyway: S123
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 622
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: 10-072 Strike
Strike Height: 4.875
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1.1875
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- L Series Mounting Plate Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
