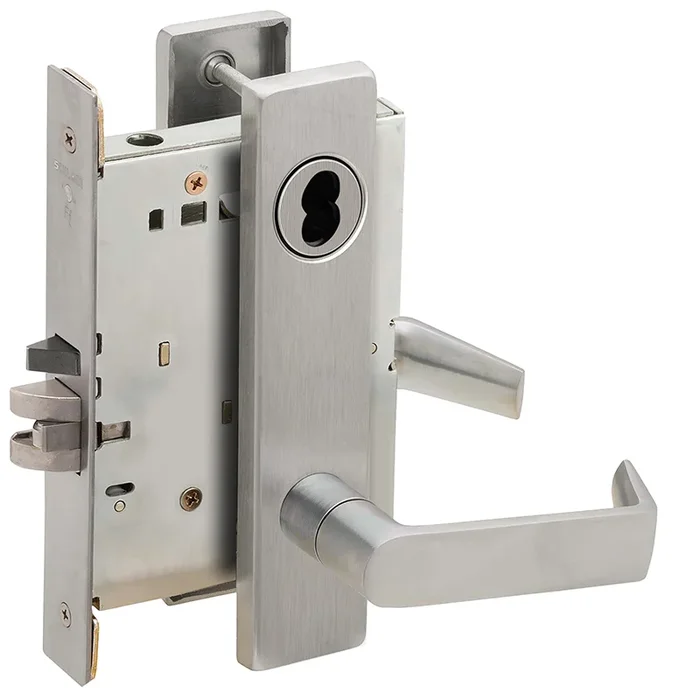

Schlage L9070B 06L 630 Grade 1 Classroom Lock
Schlage L9070B 06L 630 Grade 1 Classroom Lock offers unparalleled security and versatility for high-traffic environments. Engineered as a Grade 1 Classroom Mortise Lock, this lock is designed with a heavy-gauge steel case, ensuring exceptional durability and protection against door edge attacks. Its satin stainless steel finish (630/US32D) not only enhances aesthetics but also provides longevity, making it ideal for schools, hospitals, and factories where reliable hardware is essential. This lock features a field-reversible handing design, allowing for easy installation on various door configurations without needing to open the lock case. The L9070B is compatible with SFIC Prep Less Core, streamlining key management while reducing wear and tear with its two-piece anti-friction tongue. Built-in security measures include a break-away spindle and a spring-loaded fusible link for fail secure mode during emergencies. With its universal design, the L9070B accommodates ten functions in one case, making it adaptable to a wide range of applications. The independent lever rotation enhances ease of use, while the locking thumb-turn provides clear visual feedback on the lock state. Choose the Schlage L9070B for a robust, dependable locking solution that meets ANSI Grade 1 standards and stands up to the rigors of daily use.
Grade 1 Classroom Lock
Grade 1 Classroom Mortise Lock, SFIC Prep Less Core, 06 Lever, L Escutcheon, Satin Stainless Steel Finish, Field Reversible
Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting – no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F05 – Classroom
Bolt Projection: 3/4″ Latch
Burglar Rated: No
Cam Number: L583-255
Cam Type: Schlage L
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-3/8″
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9070-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6 to 7
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 2-1/2″
Roseescutcheon Design: L Escutcheon
Roseescutcheon Dimensions: 8″ x 1-3/4″ x 7/16″
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 630
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
