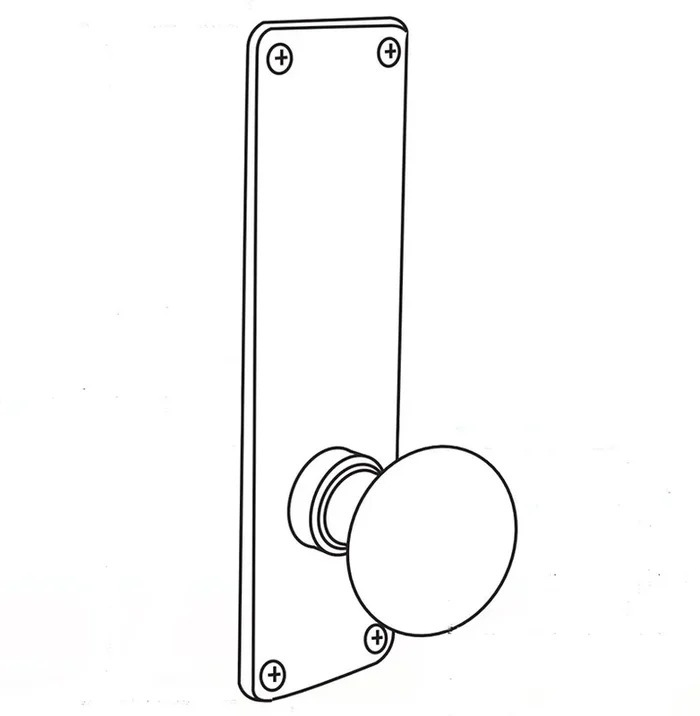

Arrow Lock AM17 TG 26D Grade 1 Classroom Mortise Lock
Arrow AM17 TG 26D Grade 1 Classroom Mort Lock delivers exceptional security and durability, making it ideal for high-traffic environments such as schools, hospitals, and commercial buildings. This robust classroom mortise lock features a T knob and G escutcheon, all finished in elegant satin chrome to complement any décor. Engineered for heavy-duty use, the lock case is constructed from heavy gauge steel with a zinc dichromate finish, ensuring corrosion resistance and longevity. The AM17 is easily re-handed in the field without the need for disassembly, providing flexibility for various applications. With a standard door thickness of 1-3/4″ and a backset of 2-3/4″, it fits seamlessly into most installations. The lock boasts a stainless steel latchbolt with a 3/4″ throw, along with a one-piece stainless steel deadbolt for added security. Its standardized case simplifies mortising, while the self-aligning trim minimizes installation complications, saving both time and labor. With a five-year limited warranty, the Arrow AM17 offers peace of mind and reliability. It’s available with multiple keying options, including master keying and interchangeable cores, ensuring that your security needs are fully met. Choose the Arrow AM17 for a blend of strength, style, and functionality in your door hardware solutions.
Grade 1 Classroom Mort Lock
Classroom Mortise Lock, T Knob, G Escutcheon, Satin Chrome
Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.
The AM Series is engineered for strength and performance, and manufactured to exacting standards.
The Arrow AM Seriesmortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.
- Handing – Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness – 1-3/4″ (4mm) standard.
- Backset – 2-3/4″ (70mm).
- Lockcase – Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm).
- Armored Front – Heavy gauge steel, 8″ (203 mm) x 1-1/4″ (32mm) x 3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
- Faceplate – Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
- Latchbolt – Stainless steel, 2 piece mechanical with anti-friction insert. 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Auxiliary Latchbolt – 9/16″ (14mm) effective throw and 3/8″ (10mm) effective auxiliary latch deadlocking.
- Deadbolt – One-piece stainless steel, 19/32″ (15mm) x 1 1/4″ (32mm) x 1″ (25mm) throw.
- Hub – Knob: nickel steel, 5/16″ (8mm) and 9/32″. Lever: nickel steel, 5/16″ (8mm).
- Spacing – Center to center, hub to cylinder: 3-5/8″ (92mm). Center to center, hub to turnpiece 2-7/16″ (62 mm).
- Strike – Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8″ (124mm) x 1-1/4″ (32mm) 1-1/8″ (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Keys – Two nickel silver standard. Keying Features Available: • Master keying • Construction master keying • Visual key control • Concealed key control • Interchangeable core (IC) – Pointe, Choice Base, Plus, and Flex
- Warranty – Five-year limited.
- Standardized Case – One size case for uniform mortising.
- Reversibility – Locks are easily reversed for change of hand.
- Self Aligning Trim – Standard with rose trim. Eliminates bind, facilitates installation, gives support and saves labor.
- Designs – Broad spectrum of designs including lever handles, knobs for roses and escutcheons in architectural finishes.
- Complete Range of Functions – To meet all requirements.
Attributes
Ansi Function: F05 – Classroom
Application: Complete Lock
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 17-Classroom
Grade: Grade 1
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Leverknob Design: T – Knob
Limited Warranty: 5 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Height: 4.5″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 239.34 in³
Pack Width: 5.75″
Pins: 6
Product Height: 8″
Product Length: 2.88″
Product Width: 2.25″
Roseescutcheon Design: G – Escutcheon
Screws: Combination
Series: AM Series Mortise Locks
Ship Weight: 6 lbs.
Std Keyway: A
Std Strike Height: 4-7/8″
Std Strike Number: 463
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
