Description

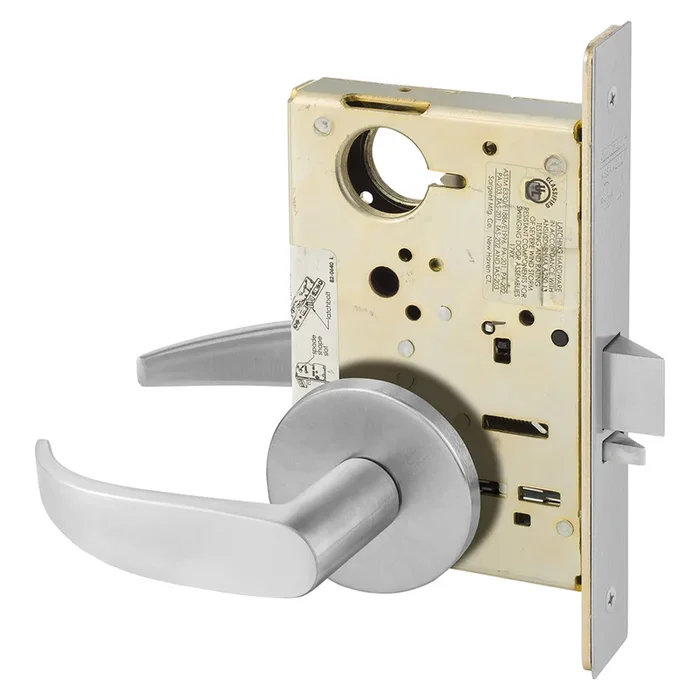

Sargent LC-8237 OP 26D Grade 1 Classroom Door Hardware No DB
Sargent LC-8237 OP 26D Grade 1 Classroom No DB is a robust Grade 1 Classroom Mortise Lock designed to deliver exceptional strength and reliability. Exceeding ANSI/BHMA A156.13 Series 1000 standards, this lock is recognized as one of the most durable mortise options available. Its construction features high-quality components, ensuring maximum security and performance suitable for diverse environments, including schools, hospitals, and offices. The LC-8237 boasts a field-reversible handing, allowing for versatile installation, and includes an ASA strike for optimal compatibility. With a satin chrome finish, it not only offers durability but also enhances the aesthetic appeal of any door. The lock is available in various functions and lever designs, providing flexibility to match different architectural styles. Security is paramount, with features designed to resist unauthorized entry and vandalism. Additionally, the lock is UL-cUL listed for three-hour fire doors, further emphasizing its safety credentials. Backed by a 10-year warranty, Sargent ensures long-lasting reliability for your locking needs.With a bolt projection of 3/4 inch and designed for doors with a thickness of 1-3/4 inches, the Sargent LC-8237 is an ideal choice for those seeking a reliable and visually appealing locking solution.
Grade 1 Classroom No DB
Grade 1 Classroom Mortise Lock, P – Lever, O – Rose, Field Reversible, Less Cylinder, ASA Strike, Satin Chrome
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F05 – Classroom
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch
Country of origin: USA
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4 In.
Finish: 626/US26D
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 37-Classroom
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: P – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Roseescutcheon Design: O – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
