Description

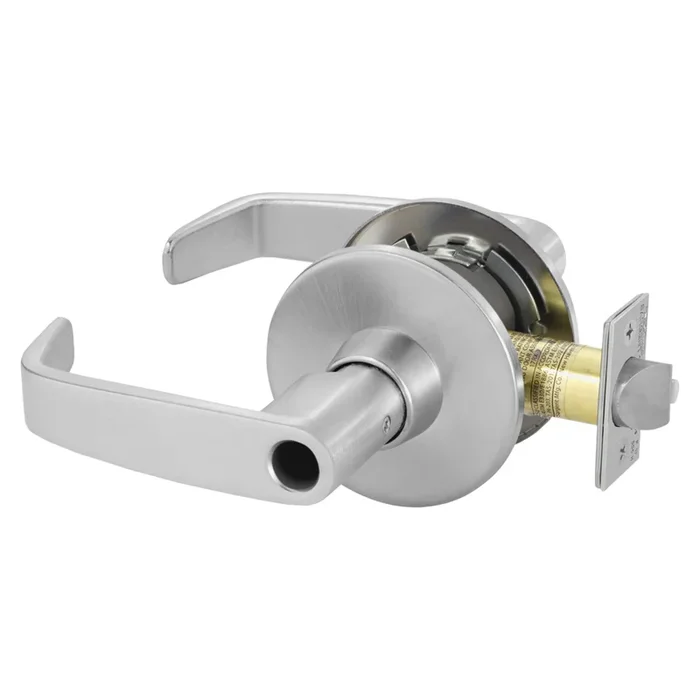

Sargent 28LC11G16LL26D Classroom Security Tubular Bored Lock Grade 1 with L Lever and L Rose and ASA Strike Less Cylinder Satin Chrome Finish
Sargent 28LC11G16LL26D Classroom Security Tubular Bored Lock Grade 1 with L Lever and L Rose and ASA Strike Less Cylinder Satin Chrome Finish
Attributes
Ansi: F88
Ansi Function: F88 – Entry/Restroom
Backset: 2-3/4″ Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4-1/4″
Box Width Fraction: 7-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Double Cylinder
Design: L Lever and L Rose
Door Thickness: 1-3/4″ to 2″
Finish: Satin Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 16-Classroom Security Apartment Exit Privacy
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year
Lock Face Size: 1 x 2-1/4″
Manufacturer Function: Classroom/Security/Apartment
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.25″
Pack Height 2: 9″
Pack Length: 8.25″
Pack Length 2: 20.75″
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13″
Pack Width 2: 15″
Pins: 6
Product Height: 4.25″
Product Length: 8.25″
Product Width: 7.13″
Projection: 2-3/4″
Rose Escutcheon: Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 11 Series
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 11-2106
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike: ASA Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Tubular
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
