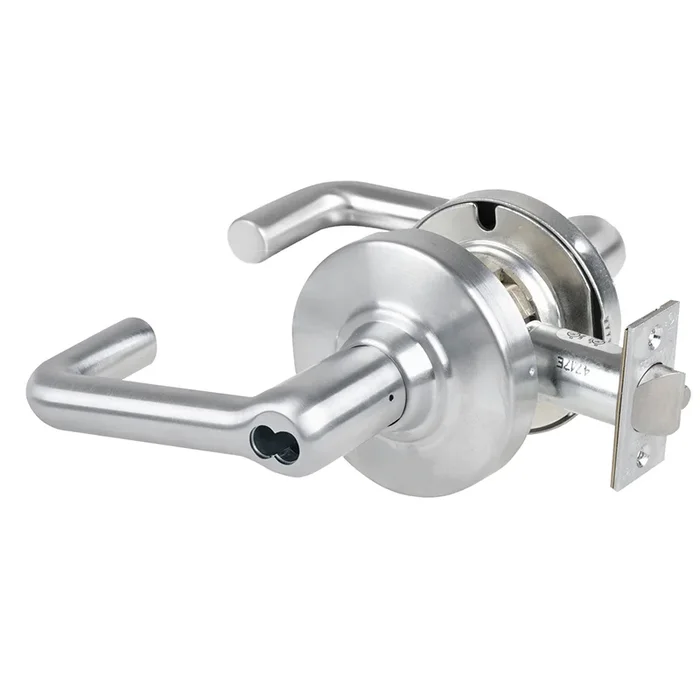

Schlage ND70x80BD TLR 626 XN12-006 Grade 1 Classroom MaxStream Lock Instructions
Schlage ND70x80BD TLR 626 XN12-006 Grade 1 Classroom by Storeroom Lock offers an ideal solution for commercial applications requiring durability and ease of use. Designed with a tubular lever, this lockset is non-handed and fits door thicknesses ranging from 1 5/8″ to 2 1/8″, making it versatile for various installations. Its satin chrome finish not only enhances aesthetics but also provides a sleek, modern touch. Certified as Grade 1, the ND Series lock exceeds 3 million operating cycles, ensuring reliable performance under heavy use in settings like healthcare, education, and retail. The lock features a steel latch bolt with a ½” throw, deadlocking capabilities for keyed functions, and a robust zinc-plated lock chassis for corrosion resistance. The ND70x80BD is equipped with a 6-pin Everest 29 S123 keyway and comes with two patented nickel silver keys, offering enhanced security through keying options such as interchangeable cores and master keying. With a ten-year limited warranty, this lockset exemplifies Schlage’s commitment to quality and innovation, making it a trusted choice for professionals and homeowners alike.
Grade 1 ClsrmxStrm Lock
Grade 1 Classroom by Storeroom Lock, Tubular Lever, SFIC Prep Less Core, Satin Chrome Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque,lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
- Handing:All ND-Series lever locksets are non-handed.
- Door Thickness:1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” – 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset:2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate:Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis:Zinc plated for corrosion resistance.
- Latch Bolt:Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim:Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike:ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys:6-pin Everest 29 S123keyway standard with two patented nickel silver keys per lock.
- Keying Options:Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty:Ten-year limited for all functions including Vandlgard.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Double Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 70×80-Classroom x Storeroom Lock
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Tubular
Leverknob Design: TLR – Tubular Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Classroom by Storeroom Lock
Maximum Door Thickness: 2-1/8 In.
Mechanical Option: XN12-006
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Pbs Options: ‘4540301,4541421
Product Height: 3.44″
Projection: 3 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
