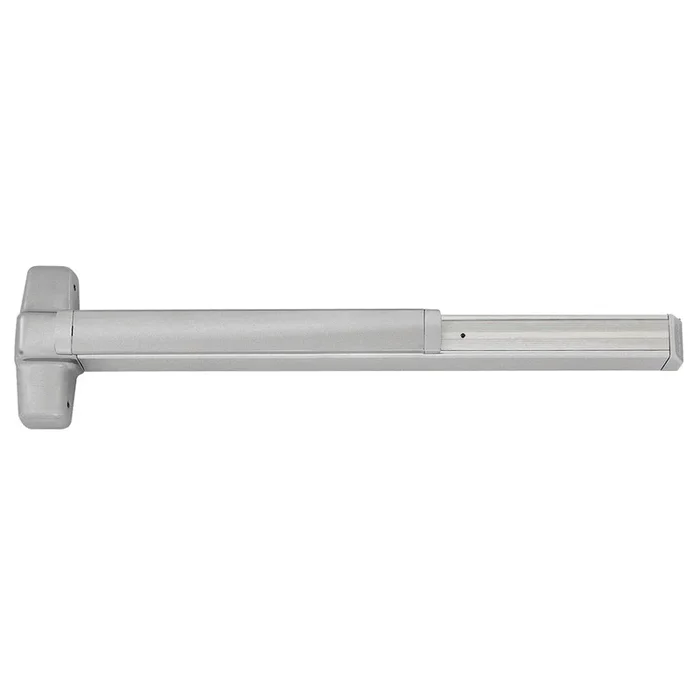

Von Duprin 9949EO 3 26D 10ft Grade 1 CVC Exit Device – 626
Von Duprin 9949EO 3 26D 10ft Grade 1 CVC Exit Device 626 offers a robust solution for emergency exits with its Grade 1 Concealed Vertical Cable design, tailored for both single and double metal doors. Measuring 36 inches, this exit device accommodates door heights between 110 and 120 inches, making it versatile for various commercial applications. The satin chrome finish not only enhances its aesthetic appeal but also ensures durability in high-traffic environments. Featuring hex dogging for secure operation, the 9949EO is UL listed for panic exit hardware, providing peace of mind during emergencies. The device is field reversible, allowing for flexible installation to suit different door configurations. Designed specifically for metal doors with a thickness of 1-3/4″ to 2-1/4″ and a width of 28″ to 36″, it provides a reliable exit solution without compromising on style. With a limited three-year warranty, this exit device showcases quality assurance. Additionally, it meets ANSI A156.3 2014 standards and is BAA qualified, making it a solid choice for commercial settings. Ensure safety and functionality with the Von Duprin 9949EO, a trusted component for effective building security.
Grade 1 CVC Exit Device 626
Grade 1 Concealed Vertical Cable Exit Bar, 36″ Device, 110″ to 120″ Door Height, Exit Only, Hex Dogging, Satin Chrome Finish, Field Reversible
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Concealed Vertical Cable
Dogging Options: Hex Dogging
Door Height: 110″ to 120″
Door Material: Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9949 Series Concealed Cable Exit Devices
Strike Bottom: 349
Subtype: Concealed Vertical Cable Exit Devices
Top Strike: 249
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 98/9949 Series Cable Attachment Installation Instructions
- Concealed Vertical Cable Brochure
- Concealed Vertical Cable Sell Sheet
- Von Duprin Finishes Chart
