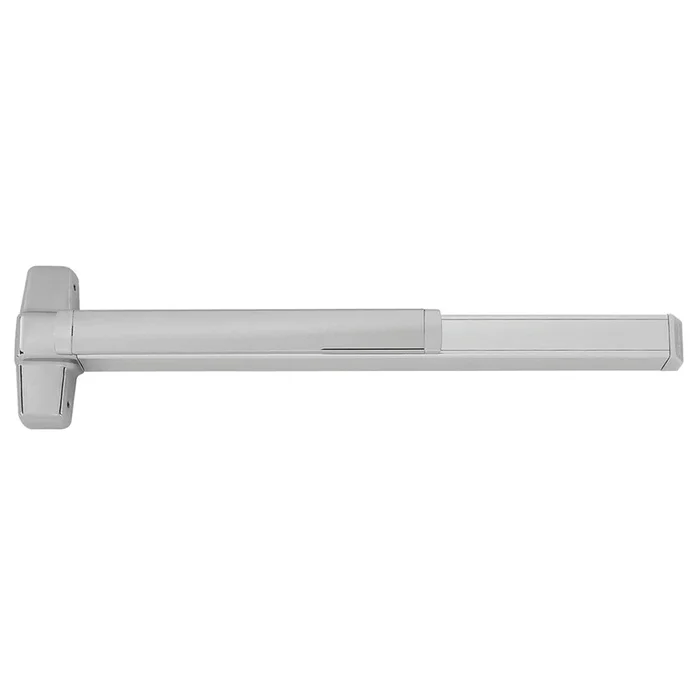

Von Duprin QEL9849EO 3 26D Grade 1 CVC Exit Device 626
Von Duprin QEL9849EO 3 26D Grade 1 CVC Exit Device 626 is a top-tier concealed vertical cable exit bar designed for commercial applications. This 36-inch device accommodates door heights ranging from 82 to 96 inches and is engineered with motorized latch retraction for seamless operation. The satin chrome finish not only enhances aesthetic appeal but also ensures durability in high-traffic environments. This exit device is UL listed for panic exit hardware, making it a reliable choice for both single and double metal doors. With its field-reversible handing, installation flexibility is streamlined, allowing for an efficient setup that meets various architectural needs. The Grade 1 rating signifies superior performance and reliability, while the less dogging feature simplifies maintenance without compromising safety. Ideal for doors with a thickness of 1-3/4″ to 2-1/4″ and widths of 28″ to 36″, this device pairs well with numerous trim options, catering to diverse design preferences. The Von Duprin QEL9849EO is proudly made in the USA, reflecting high standards of craftsmanship. Backed by a one-year limited warranty, this exit device not only meets ANSI A156.3 2014 standards but also promises lasting security and functionality for commercial spaces.
Grade 1 CVC Exit Device 626
Grade 1 Concealed Vertical Cable Exit Bar, 36″ Device, 82″ to 96″ Door Height, Exit Only, Motorized Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Concealed Vertical Cable
Dogging Options: Less Dogging
Door Height: 82″ to 96″
Door Material: Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Electric Options: Motorized Latch Retraction
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9849 Series Concealed Cable Exit Devices
Strike Bottom: 349
Subtype: Motorized Exit Devices
Top Strike: 249
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 98/9949 Series Cable Attachment Installation Instructions
- 9849 Series Concealed Cable Exit Devices Cut Sheet
- Concealed Vertical Cable Sell Sheet
- Von Duprin Finishes Chart
