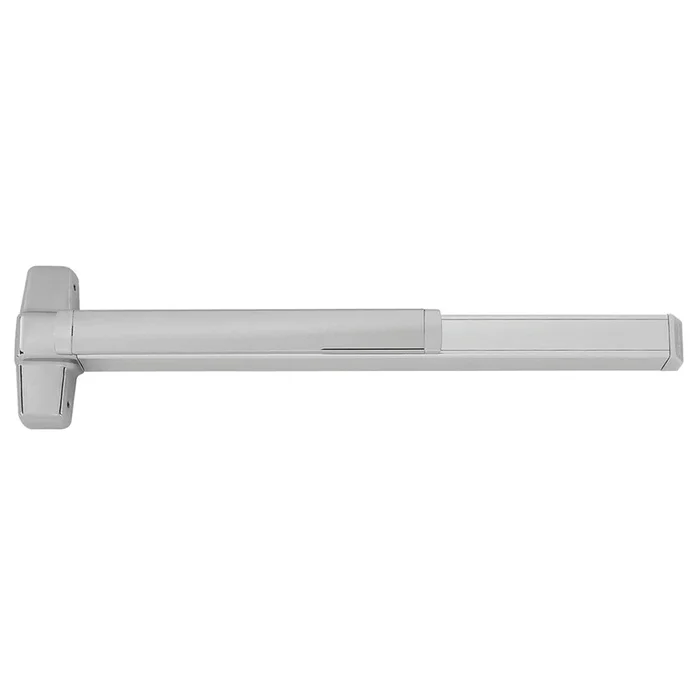

Von Duprin QEL9849EO 3 US28 Grade 1 CVC Exit Device 628
Von Duprin QEL9849EO 3 US28 Grade 1 CVC Exit Device 628 is a premier solution designed for commercial spaces requiring reliable and secure exit hardware. This Grade 1 concealed vertical cable exit device is crafted for single or double metal doors with a height range of 82″ to 96″, ensuring a perfect fit for various door configurations. The 36″ device features motorized latch retraction, allowing for swift and efficient egress without the need for manual operation. Constructed with a satin aluminum clear anodized finish, this exit device not only meets aesthetic demands but also provides durability and resistance to wear. The field-reversible design enhances versatility, making installation straightforward for building professionals. It is UL listed for panic exit hardware, assuring users of its safety and reliability. Key specifications include compatibility with doors that are 1-3/4″ to 2-1/4″ thick and 28″ to 36″ wide, and it accepts various trim options for added customization. The device is designed without dogging features, streamlining its operation for exit-only applications. With a limited one-year warranty, the Von Duprin QEL9849EO is a dependable choice for ensuring safe egress in commercial environments.
Grade 1 CVC Exit Device 628
Grade 1 Concealed Vertical Cable Exit Bar, 36″ Device, 82″ to 96″ Door Height, Exit Only, Motorized Latch Retraction, Less Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible
9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Concealed Vertical Cable
Dogging Options: Less Dogging
Door Height: 82″ to 96″
Door Material: Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Electric Options: Motorized Latch Retraction
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9849 Series Concealed Cable Exit Devices
Strike Bottom: 349
Subtype: Motorized Exit Devices
Top Strike: 249
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 98/9949 Series Cable Attachment Installation Instructions
- 9849 Series Concealed Cable Exit Devices Cut Sheet
- Concealed Vertical Cable Sell Sheet
- Von Duprin Finishes Chart
