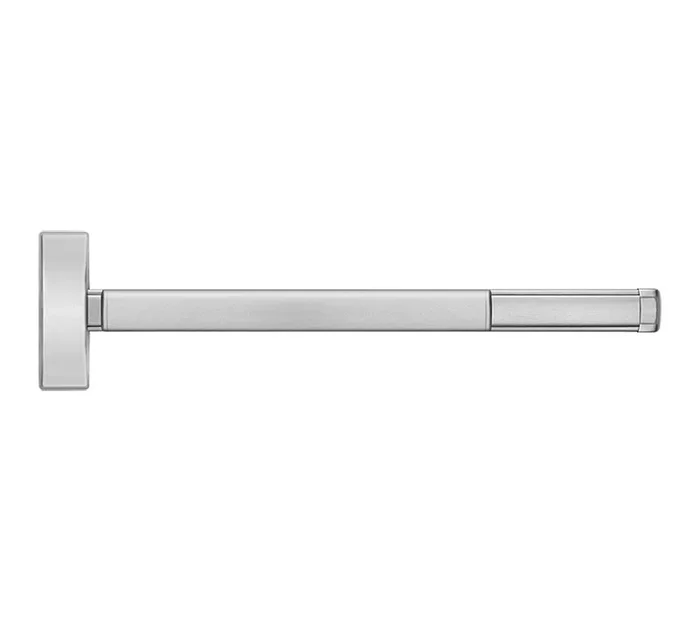

PHI ELR2801 630 48 Grade 1 CVR Exit Device Instructions
PHI ELR2801 630 48 Grade 1 CVR Exit Device offers an exceptional blend of security and design, making it a preferred choice for commercial settings. This Grade 1 concealed vertical rod exit device features a wide stile pushpad and is designed for exit-only functionality, equipped with hex key dogging and electric latch retraction for enhanced accessibility. The elegant satin stainless steel finish not only provides durability but also complements a variety of architectural styles. Engineered for versatility, the ELR2801 is suitable for metal single and double door applications with openings up to 4’-0″ wide and 10’-0″ high, accommodating door thicknesses from 1-3/4″ to 2-1/4″. With field-reversible functionality and adjustable vertical rods, installation is straightforward and adaptable to different needs. The device is UL listed for panic and fire hardware, ensuring compliance with safety standards. Constructed from heavy wrought brass, bronze, or stainless steel, the device’s robust design features a stainless steel top latchbolt with a 3/4″ throw, providing reliable locking performance. Ideal for healthcare and educational facilities, the PHI ELR2801 combines practicality with an aesthetically pleasing design, ensuring a secure and efficient exit solution.
Grade 1 CVR Exit Device
Grade 1 Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 48″ Device, Exit Only Function, Hex Key Dogging, Electric Latch Retraction, Satin Stainless Steel Finish, Field Reversible
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
For all types of metal single and double door applications.
Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide by 10-0 high openings. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide by 6′-8″ to 8′-0″ high openings.
- FUNCTIONS – Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
- BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- CHASSIS – Lock Stile Assembly – Investment Cast Steel, Zinc Dichromated.
- VERTICAL RODS – Steel, plated. Top Rod is adjustable from 6′-8″ to 8′-0″ or from 8′-1″ to 10′-0″. Note: All vertical rod lengths are based on 39 15/16” exit device horizontal centerline.
- TOP LATCHBOLT – Stainless Steel, Deadlocking, 3 /4″ throw.
- TOP STRIKE – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
- BOTTOM STRIKE – No. S460 Flush mounted, Steel, Black Powder Coated.
- DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
- TOUCHBAR HEIGHT – 39-15/16″ from floor standard. Specify required height if other than standard.
- REVERSIBLE – Reversible for all functions and trims. Standard packaging RHRB. UL LISTED – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
- FINISHES – 605, 606, 612, 613, 625, 628, 630.
- CYLINDERS – Rim Type, not furnished standard. Specify when required.
Attributes
Manufacturer surcharge: 7.0%
Ansi: A156.3
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Concealed Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 6′-8″ to 8′
Door Material: Metal
Door Thickness: 1-3/4″
Door Width: 4′
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Field Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2800 Series Apex Concealed Vertical Rod Exit Devices
Strike Bottom: S460
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: S519
Type: Exit Devices
Ul Listing: UL10C
Unit of Measure: Each
