Description

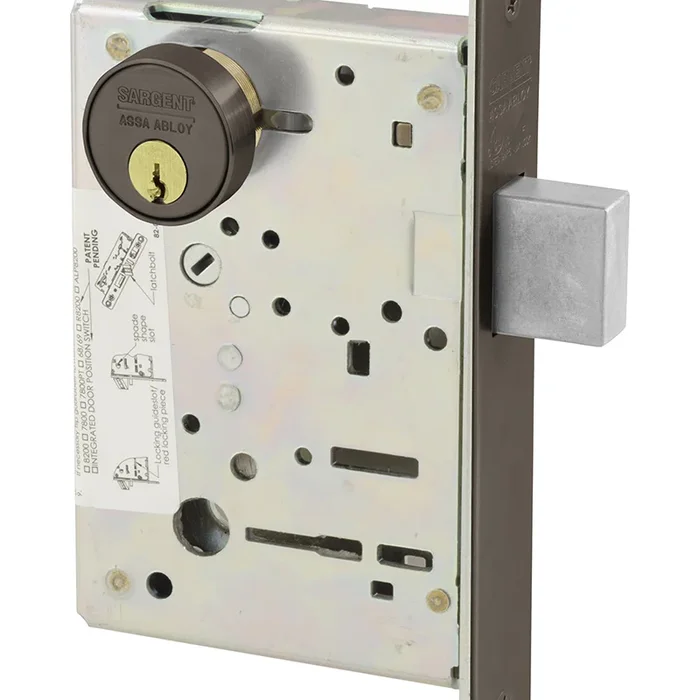

Sargent 8221 10B Manufacturing Mortise Deadbolt Only
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Attributes
Ansi Function: F17 – Single Deadlock
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 1 In. Deadbolt
Bolt Protection: 1 In. Deadbolt
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 2-1/4 In. – 2-1/2 In.
Finish: 613/US10B
Finish : Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 21-Deadlock
Grade: Grade 1
Hand: Not Handed
Handing: Not Handed
Latch Backset Dim: 2-3/4 In.
Latch Type: Deadbolt
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 4.05 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Deadbolt
Std Strike Height: 4-7/8 In.
Std Strike Number: 7730
Std Strike Type: Flat Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Height: 4-7/8 In.
Strike Number: 7730
Strike Type: Flat Strike
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
