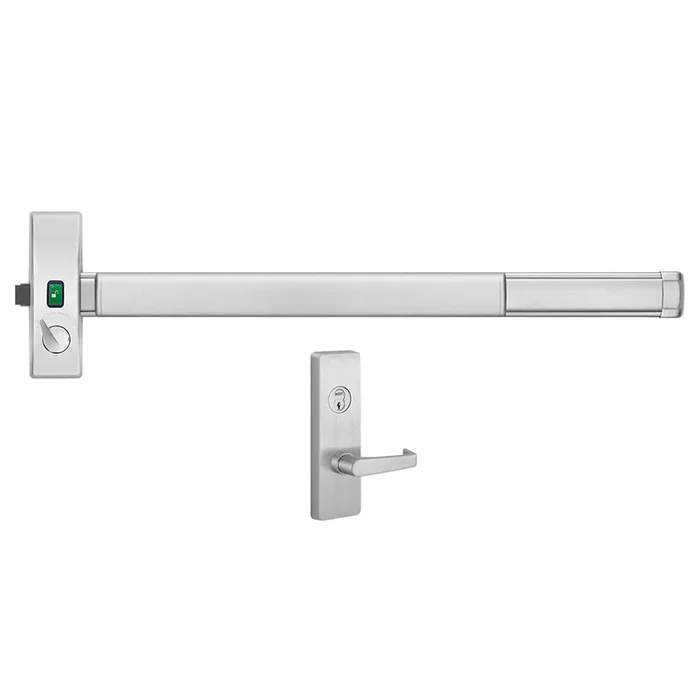

PHI FL2110VI 4908A 630 36 RHR Grade 1 Double Cylinder Rim Exit Device
PHI FL2110VI 4908A 630 36 RHR Grade 1 Double Cyl Rim Exit is a premier choice for commercial applications, combining safety and functionality in a sleek design. This Grade 1 fire-rated rim exit device features a wide stile pushpad and is engineered for doors with a thickness of 1-3/4″ to 2-1/4″ and a width of up to 3 feet. The classroom intruder function enhances security, making it ideal for educational and healthcare facilities that require reliable access control. Designed for durability, the device is constructed from heavy wrought brass, bronze, or stainless steel, ensuring long-lasting performance. The stainless steel latchbolt provides a 3/4″ throw for secure locking, while the double cylinder option includes an indicator for added convenience. With an ANSI/BHMA Grade 1 certification, the FL2110VI meets stringent standards for panic and fire hardware. The exit device is UL listed, confirming its compliance with safety regulations, including UL10C and UBC 7-2. Reversible for easy installation, it accommodates various door materials and is equipped with a standard 1/4″ turn hex key dogging. Available in a satin stainless steel finish, the PHI FL2110VI is not just a functional solution but also an aesthetically pleasing addition to any doorway.
Grade 1 Double Cyl Rim Exit
Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, 36″ Device, Classroom Intruder Function, A Lever, Less Dogging, Double Cylinder with Indicator, Satin Stainless Steel Finish, Right Hand Reverse
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
DOORS – For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS – Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER – Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS – Investment Cast Steel, Zinc Dichromated.
LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw. STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT – 39-15/16″ from floor standard. May be varied as situation dictates. R
EVERSIBLE – Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED – Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES – 605, 606, 612, 613, 625, 628, 630
Attributes
Manufacturer surcharge: 7.0%
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Design A: A Lever
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: All Types
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 3′
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right Hand Reverse
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Classroom Intruder
Mechanical Options: Double Cylinder Device with Indicator
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2100 Series Apex Rim Exit Devices
Strike Standard: S300
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
