Description
Schlage L9095EUP 06A 605 Grade 1 Electric Both Levers, No DB

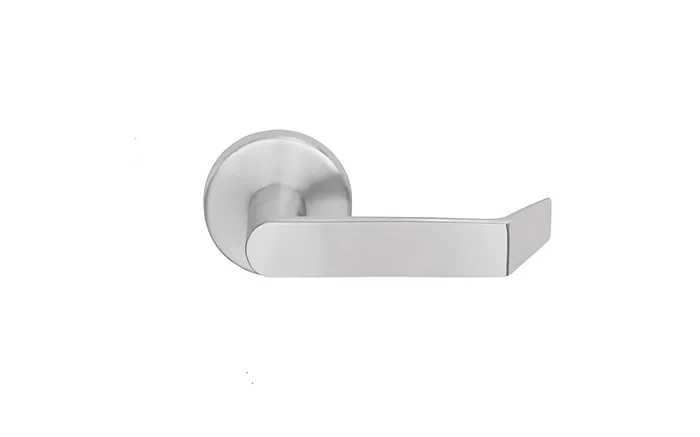

Schlage L9095EUP 06A 605 Grade 1 Elec Both Lvrs, noDB is a robust fail secure electric mortise lock designed for commercial applications. This Grade 1 lock features a conventional cylinder and a stylish 06 lever with an A rose, all finished in bright brass for a polished look. Its field-reversible design allows for easy installation, accommodating various door configurations. The L9095EUP is equipped with advanced technology, including a universal input voltage that accepts 12 or 24VDC. Users can effortlessly select fail safe or fail secure functions by flipping a switch within the lock case. The innovative RX switch monitors the inside lever, enhancing security and sensitivity without needing to open the lock.This electric mortise lock supports a door thickness of 1-3/4″, with a bolt projection of 3/4″, ensuring a secure fit. It is also fire-rated for up to 3 hours, making it suitable for a variety of safety environments. The lock includes a keyed different option with two keys provided, and a limited warranty of one year offers peace of mind. With its combination of security features and user-friendly design, the Schlage L9095EUP is an excellent choice for anyone seeking reliable door hardware.
Grade 1 Elec Both Lvrs, noDB
Grade 1 Fail Secure Electric Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Bright Brass Finish, Field Reversible
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 400mA
Base Material: Brass
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9095EU-Fail Secure
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Included
Leverknob Design: 06 Lever
Limited Warranty: 1 Year
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Pins: 6
Power: Hard Wired
Roseescutcheon Design: A Rose
Screws: Combination
Series: L9090 Series Electrified Mortise Lock
Std Keyway: C
Std Strike Height: 4-7/8″
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Mortise Lock
Type: Electric Locks
Unit of Measure: Each
