Description

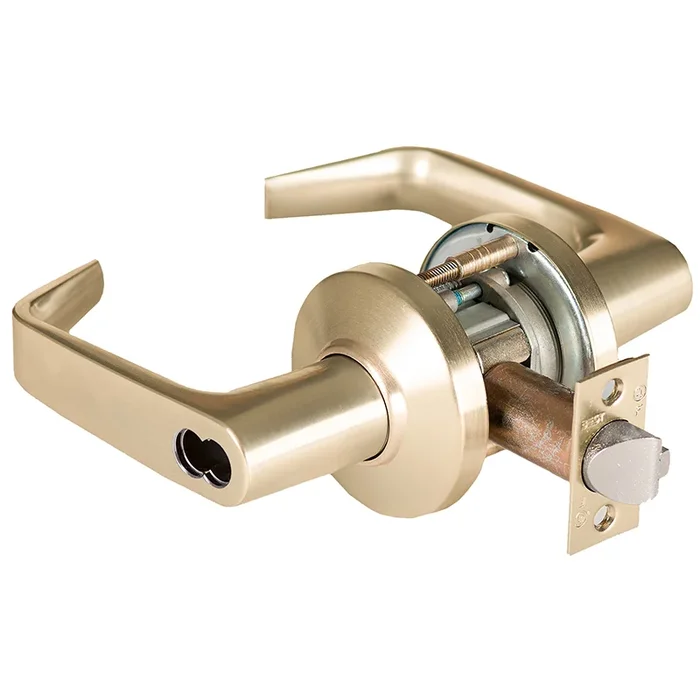

Best 9K37AB15CS3606 Best Cylindrical Lock
Stanley Best 9K37AB15CS3606 9K Series 2-3/4″ Backset 7 Pin Entry 15 Lever and C Rose with ANSI Strike Less Core Satin Brass Finish
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Strong Retractor Springs Provide Resistance To Lever Sag
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Attributes
Manufacturer surcharge: 7.0%
Ansi: F109
Ansi Function: F109 – Entry/Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Base Material: Brass
Bolt Projection: 9/16″
Bolt Protection: 9/16″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 8-1/8″
Box Height Fraction: 4″
Box Width Fraction: 6-5/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 15C
Door Thickness: 1-3/4″ – 2-1/4″
Finish: Satin Brass
Finish : Satin Brass
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entrance
Function Family: Entrance
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 1″
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: 15 – Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4″ x 1-1/8″
Manufacturer Function: Entrance
Maximum Door Thickness: 2-1/4″
Minimum Door Thickness: 1-3/4″
Origin: USA
Pack Height: 4″
Pack Height 2: 8.75″
Pack Length: 8.13″
Pack Length 2: 20.5″
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63″
Pack Width 2: 12.5″
Pins: 6 to 7
Product Height: 4″
Product Length: 8.13″
Product Width: 6.63″
Projection: 2-3/4″
Rose Escutcheon: Rose
Rose Escutcheon Design: C – Rose
Roseescutcheon Design: C Rose
Roseescutcheon Dimensions: 3″
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838287182
