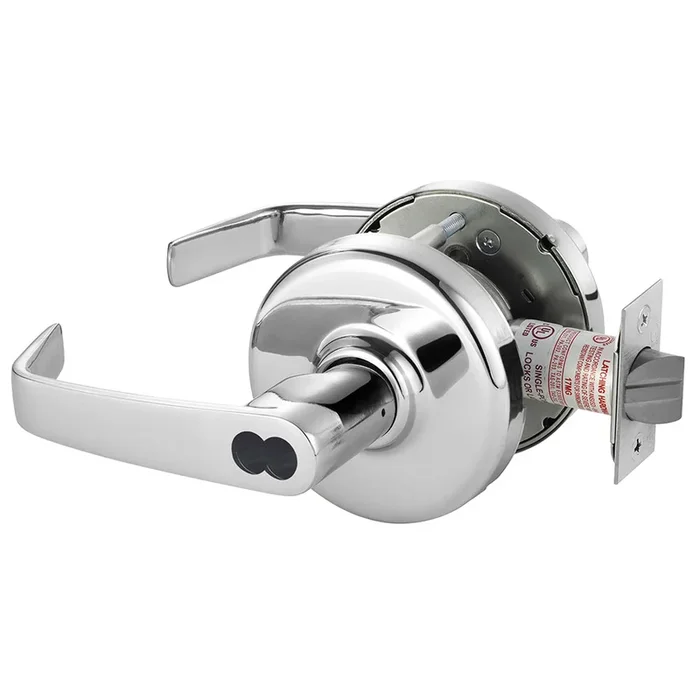

Corbin Russwin CLX3351 NZD 625 CL6 Grade 1 Entrance Lock Instructions
Corbin Russwin CLX3351 NZD 625 CL6 Grade 1 Entrance Lock offers robust security and stylish design, making it ideal for high-traffic environments. This Grade 1 cylindrical lock features the Newport Lever design and is equipped with a less core 6-pin LFIC cylinder, ensuring durability and reliability for commercial use. Finished in a sleek bright chrome, this lock complements various decor styles without compromising on strength. Designed for easy installation, the CLX3351 is non-handed, allowing for flexibility in door setups. It supports door thicknesses ranging from 1-3/4″ to 2″, making it suitable for both new constructions and retrofit projects. The deadlatch mechanism provides added security, while its ANSI/BHMA Grade 1 rating ensures it meets stringent safety standards. With a 10-year limited warranty, you can trust in the lock’s performance and longevity. The lock face measures 1-1/8″ x 2-1/4″, and it is compatible with various cylinder formats, ensuring versatility for different access control needs. The Corbin Russwin CLX3351 NZD 625 CL6 is not just a lock; it’s a blend of security and elegance that stands up to the demands of any entrance or office space.
Grade 1 Entrance Lock
Grade 1 Entrance/Office Cylindrical Lock, Newport Lever, D Rose, LFIC 6-Pin Less Core, Bright Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designedto secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you’ll never have to sacrifice style for strength. It supports all cylinder formats – from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F109
Ansi Function: F109 – Entry/Office
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4-1/2″
Box Width Fraction: 8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ – Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.5″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8″
Pins: 6
Product Height: 4.5″
Product Length: 10″
Product Width: 8″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
