Description

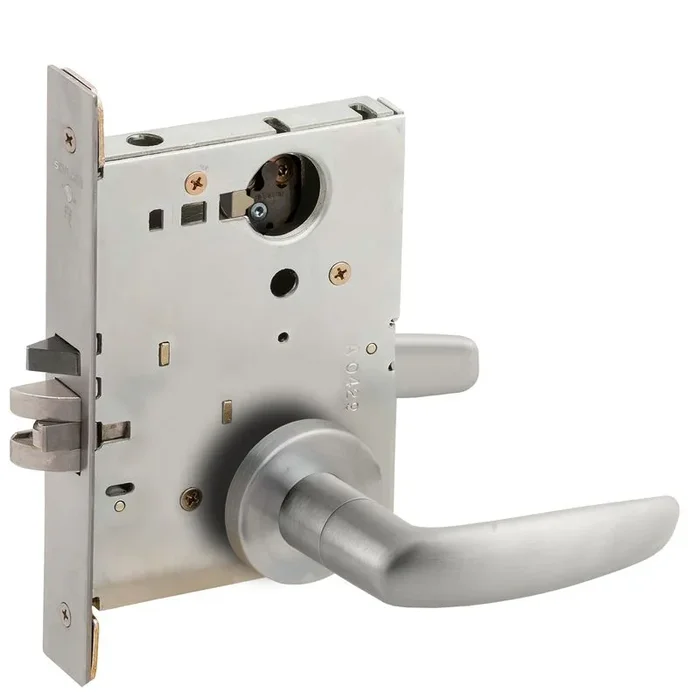

Schlage L9050L 07A 630 Grade 1 Entrance/Office Lock
Schlage L9050L 07A 630 Grade 1 Entrance/Office Lock offers unparalleled durability and security, making it an ideal choice for high-traffic environments such as schools, hospitals, and factories. Recognized as part of the L9000 Series, this Grade 1 mortise lock is designed to withstand the rigors of daily use while ensuring reliable performance. Crafted with a heavy-gauge, fully wrapped steel case, the L9050L protects against door edge attacks, while the all-metal, zinc dichromate-plated components enhance longevity and reduce wear. The field-reversible handing feature allows for easy installation, accommodating various door designs without the need to open the lock case. Security is paramount; the lock incorporates a break-away spindle to prevent unsecured failures and a hub blocking plate to deter manipulation. Additionally, a spring-loaded fusible link provides a fail-secure mode in emergency situations.With a satin stainless steel finish and a sleek A Rose trim, the Schlage L9050L not only meets ANSI Grade 1 standards but also complements any aesthetic. Designed for commercial use, it supports a range of applications and is backed by a three-year limited warranty. Upgrade your security with the robust and versatile Schlage L9050L today.
Grade 1 Entrance/Office Lock
Grade 1 Entrance Office Mortise Lock, Less Cylinder, 07 Lever, A Rose, Satin Stainless Steel Finish, Field Reversible
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting – no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F04 – Entry/Office
Bolt Projection: 3/4″ Latch
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9050-Entrance Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 07 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pocket Dimensions: 6-5/8″ x 4-1/2″
Projection: 2-7/8″
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8″
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 630
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- L Series Mounting Plate Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
