Description

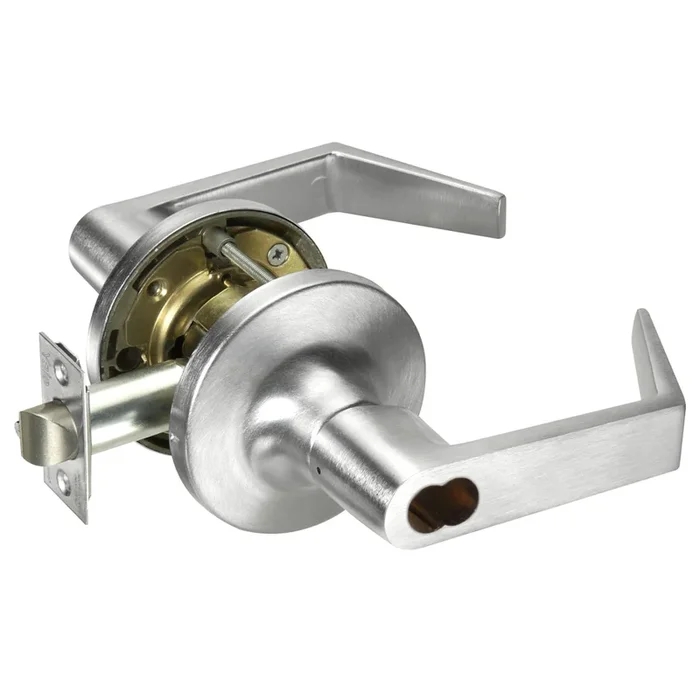

Yale B-AU5404LN 626 Cylindrical Lock
Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it’s the favorite among architects and building owners who demand the highest standard of product quality.
- ANSI / BHMA A156.2 Grade 1
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/4″ to 2-1/4″ Door Thickness
- 2-1/4″ x 1-1/8″ Beveled Front Standard
- Non Handed
Attributes
Ansi: F82A
Ansi Function: F82 – Entry
Ansi Function : Entry
Backset: 2-3/4″ Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4″
Box Width Fraction: 7-1/2″
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: Augusta
Door Thickness: 1-3/4″ – 2″
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Entry Lock
Function Family: Entrance/Office
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 1″
Latch Number: 694
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: AU – Augusta
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU – Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4″ x 1-1/8″
Manufacturer Function: Entry
Manufacturer Function : For entrance or office doors, deadlocking latchbolt, either lever operates latchbolt (except when outside lever is locked from inside), pushing button in inside lever locks outside lever (automatically releases when inside lever is turned or key is rotated in locked outside lever), latchbolt is operated by key in outside lever or by rotating inside lever, inside lever always active.
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Num Pins: 6/7
Origin: United States
Pack Height: 4″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5″
Pins: 6/7
Product Height: 4″
Product Length: 10″
Product Width: 7.5″
Projection: 3-3/64″
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-1/2 In. Diameter
Rose Escutcheon Dimensions: 3-1/2″
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Combination
Series: 5400LN Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike: ANSI Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 497
Strike Type: ASA
Strike Width: 1-1/4″
Structure Cylinder: B-
Structure Function: 04LN
Structure Latch Number: 694
Structure Outside Finish: 626
Structure Outside Trim: AU
Structure Series: 54
Structure Strike Number: 497
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
