Schlage ND12DEU ATH 626 Grade 1 Fail Secure Exit Device
Schlage ND12DEU ATH 626 Grade 1 Exit, Fail Secure is a top-tier electrified cylindrical lock designed for high-security and fire safety applications. This Grade 1 lock features a fail secure exit function and operates on a versatile 12-24V DC power supply, making it an ideal choice for various commercial environments. The Athens lever design in a satin chrome finish not only enhances the aesthetic appeal but also offers durability and reliability. Engineered for high traffic areas, this lock ensures continuous operation through line power. Its low 0.23 amp maximum current draw allows for the integration of multiple locks on a single power supply, while the low 0.010 amp holding current prevents “hot levers” in electrically locked scenarios. The ND12DEU also boasts a modular Request to Exit (RX) feature, supporting various applications with six electrified functions. This lock is UL Listed and rated for fire and electrical single-point locking on labeled doors, ensuring compliance and peace of mind. With a backset of 2-3/4″, it fits standard door preparations effortlessly. The Schlage ND12DEU is the perfect solution for those seeking enhanced security and operational efficiency in commercial settings.

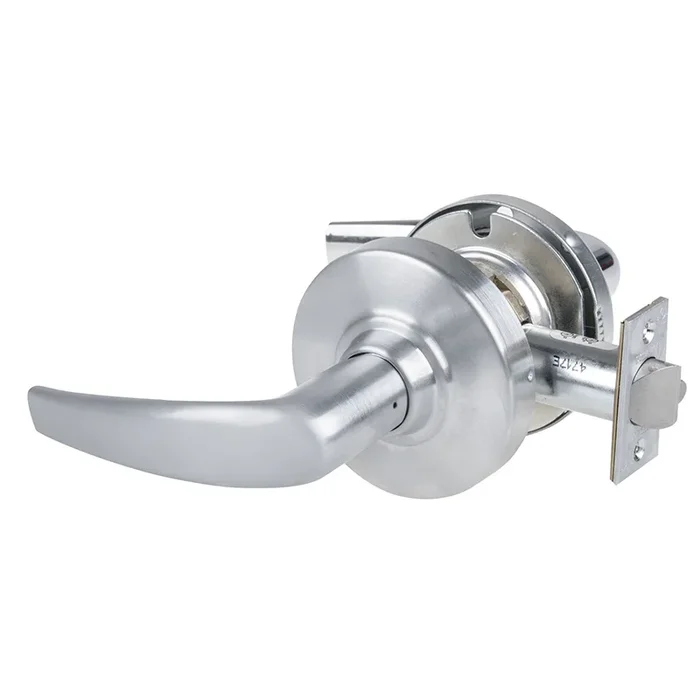

Grade 1 Exit, Fail Secure
Grade 1 Electrified Cylindrical Lock, Exit Function, 12-24V DC, Fail Secure, 2-3/4″ Backset, Athens Lever, Satin Chrome
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
Applications
The electrified ND is ideally used in:
- High traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates “hot levers” in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Attributes
Manufacturer surcharge: 4.5%
Amp Draw: 0.23
Application: Storeroom Lever
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: Mexico
Door Thickness: 1-3/4″ to 2″
Dust Box: None
Finish: 626/US26D
Function: 12EU-Fail Secure
Grade: Grade 1
Installation: Commercial
Latch Backset Dim: 2-3/4″
Leverknob Design: ATH – Athens
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ X 1-1/8″
Operating Voltage: 12VDC/24VDC
Origin: Mexico
Pack Height 2: 10″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Width 2: 14.63″
Power: Hard Wired
Product Height: 4.75″
Product Length: 9.5″
Product Width: 8.25″
Roseescutcheon Design: 3-7/16″ Diameter
Screws: Combination
Series: ND Series Electrified Lever Locks
Ship Weight: 5 lbs.
Std Latch Number: 14-047
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: None
Type: Electric Locks
