Description

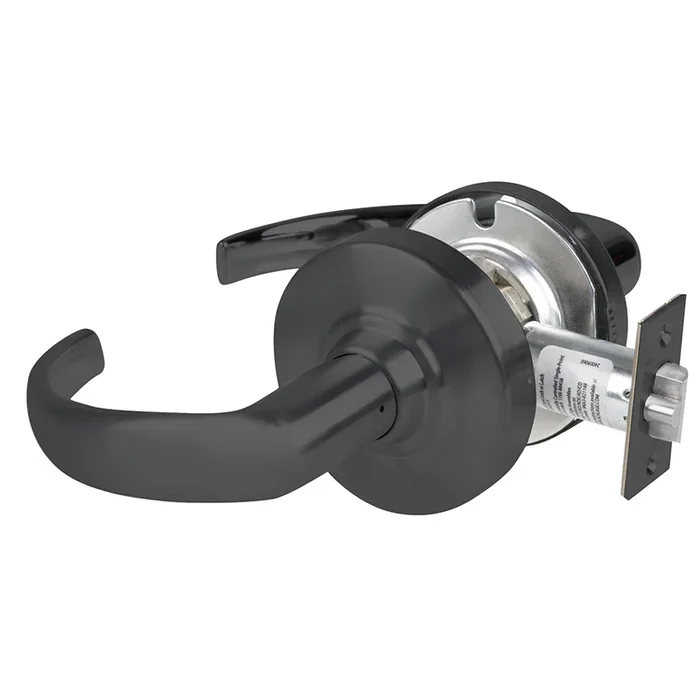

Schlage ND12D SPA 622 Grade 1 Exit Lock
Schlage ND12D SPA 622 Grade 1 Exit Lock offers a robust solution for high-traffic environments with its Grade 1 rating, ensuring reliability and longevity in various commercial applications such as healthcare, education, and retail. The Sparta lever design, finished in a sleek matte black, complements modern aesthetics while providing a non-handed configuration that simplifies installation. Engineered for superior performance, the ND Series lockset exceeds BHMA Grade 1 requirements, standing up to over 3 million operational cycles without failure. This durability guarantees the lock’s performance in demanding settings, making it an ideal choice for facilities needing high abuse resistance. With a latch bolt throw of ½ inch and a deadlocking mechanism on keyed functions, security is paramount. The lock accommodates standard door thicknesses ranging from 1 5/8 inches to 2 1/8 inches, fitting seamlessly into various entryways. Its zinc-plated chassis enhances corrosion resistance, ensuring long-lasting functionality. Additionally, the ND Series is equipped with wire-wireless capabilities to meet evolving access control needs. With a ten-year limited warranty and optional keying configurations, including master and grand master keying, Schlage ND12D SPA 622 offers peace of mind alongside top-tier security features. This exit lock is not just a product; it’s a commitment to durability and safety.
Grade 1 Exit Lock
Grade 1 Exit Lock, Sparta Lever, Non-Keyed, Matte Black Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque,lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
- Handing:All ND-Series lever locksets are non-handed.
- Door Thickness:1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” – 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset:2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate:Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis:Zinc plated for corrosion resistance.
- Latch Bolt:Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim:Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike:ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys:6-pin Everest 29 S123keyway standard with two patented nickel silver keys per lock.
- Keying Options:Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty:Ten-year limited for all functions including Vandlgard.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F89 – Exit
Baa Qualified: Yes
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 12-Exit Lock
Function Family: Exit
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1 In.
Lever Knob: Lever
Lever Knob Design Name: Sparta
Leverknob Design: SPA – Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Exit Lock
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Product Length: 6.66″
Product Width: 3.5″
Projection: 3-1/2 In.
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Everest 29 S Keyway Family Diagram
- Everest Keyways Diagram
- ND Series Electrified Functions Installation Instructions
- ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)
- ND Series Hollow Metal Door Spacer Installation Instructions
- ND Series Lever Locks Cut Sheet
- ND Series Locks & Latches Catalog
- ND Series Locks & Latches Warranty
- ND Series Mechanical Grade 1 Cylindrical Locks Catalog
- ND Series Template
- ND170 Installation Instructions (locks manufactured after 8-15-2012)
- ND170 Installation Instructions (locks manufactured before 8-15-2012)
- ND25 Installation Instructions (locks manufactured after 8-15-2012)
- ND25 Installation Instructions (locks manufactured before 8-15-2012)
- Observe Keyways for Classic Conventional Cylinders Diagram
- Observe Keyways for Classic Primus XP Cylinders Diagram
- Schlage ND Series Electrified Cylindrical Locks Sell Sheet
- Schlage ND Series Indicator Pricing Addendum
- Schlage ND Series Sell Sheet
- Schlage ND Series Service Manual
- Schlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)
- Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)
- Video: AL Lock Installation
- Von Duprin Finishes Chart
