Description
Best 45H7HJ15H626 Grade 1 Hotel Lock

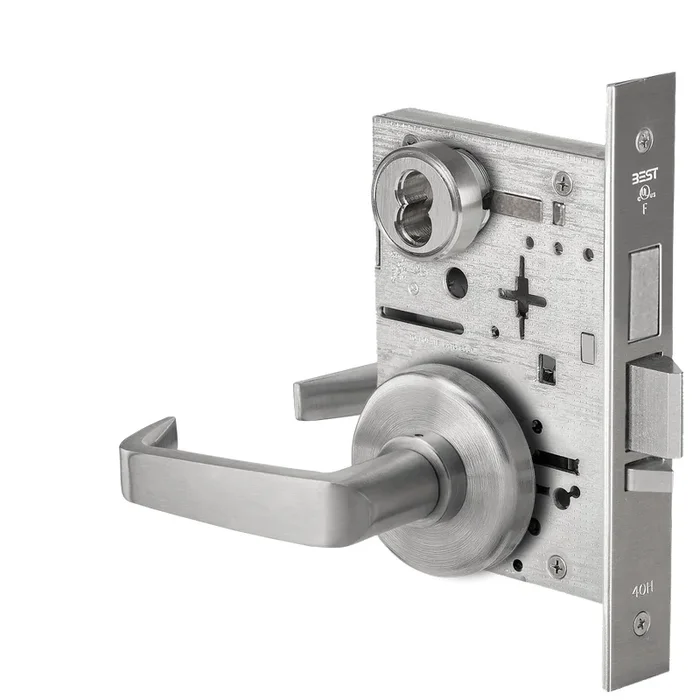

BEST 45H7HJ15H626 Grade 1 Hotel Lock is a robust and reliable solution designed for demanding commercial environments. This Grade 1 hotel mortise lock features a 15 lever design with an H rose and is compatible with SFIC housing, making it an ideal choice for hotel and motel applications. Its satin chrome finish not only enhances its aesthetic appeal but also provides a corrosion-resistant barrier, ensuring longevity. Engineered for strength and performance, the 45H series lock boasts a solid one-piece stainless steel latch that increases surface contact with the strike by 50%, providing superior security. The roller bearing hub mechanism ensures smooth, wear-resistant operation for reliable performance over time. Its precision-engineered design reduces wear on components, enhancing durability and lifecycle. Field-reversible handing simplifies installation, allowing for easy adjustments without the need to open the lock case. Designed with high traffic in mind, this lock is perfect for various architectural styles thanks to its diverse range of lever styles and trims. The 45H7HJ15H626 meets ANSI A156.13 standards and is UL listed, ensuring it delivers exceptional strength, security, and low maintenance. With a limited lifetime warranty, it stands as a dependable choice for any commercial application.
Grade 1 Hotel Lock
Grade 1 Hotel Mortise Lock, 15 Lever, H Rose, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST’s 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
- Superior strength and security. A solid one-piece stainless steel latch that provides 50% more surface contact with the strike to make the lock stronger and more secure.
- Reliable performance. The45H series locks deliver smooth, wear-resistant operationvia a roller bearing hub mechanism,
- Premium materials. Featuring a case,cover, and armored frontmanufactured from 0.095″ cold rolled steel with a corrosion-resistant coating.
- Varied aesthetics. The 45H series is visually compatible with different architectural styles and aesthetics due to itswide variety of lever styles and trims.
- Enhanced durability. The precision-engineered curve on the latch reduces wear to the strike andenhances cycle life.
- Easy to install. The reversible latch rotates 180 degrees, enabling easy handing changes without opening the 45H series case. The self-aligning trim makes installation easy, fast and accurate.
Attributes
Manufacturer surcharge: 7.0%
Ansi: F15
Ansi Function: F15 – Hotel/Motel
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4″ Latch
Box Depth Fraction: 11-1/2″
Box Height Fraction: 3″
Box Width Fraction: 9-3/4″
Burglar Rated: No
Case Dimensions: 5-7/8″ x 4-1/16″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: HJ-Hotel
Function Family: Hotel/Motel
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function: Hotel
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/4″
Origin: USA
Pack Height: 3″
Pack Height 2: 12.25″
Pack Length: 11.5″
Pack Length 2: 12.75″
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75″
Pack Width 2: 10.5″
Pins: 7
Pocket Dimensions: 6-5/8″ x 4-1/4″
Product Height: 3″
Product Length: 11.5″
Product Width: 9.75″
Projection: 2-15/16″
Rose Escutcheon: Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4″
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8″
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
