Description

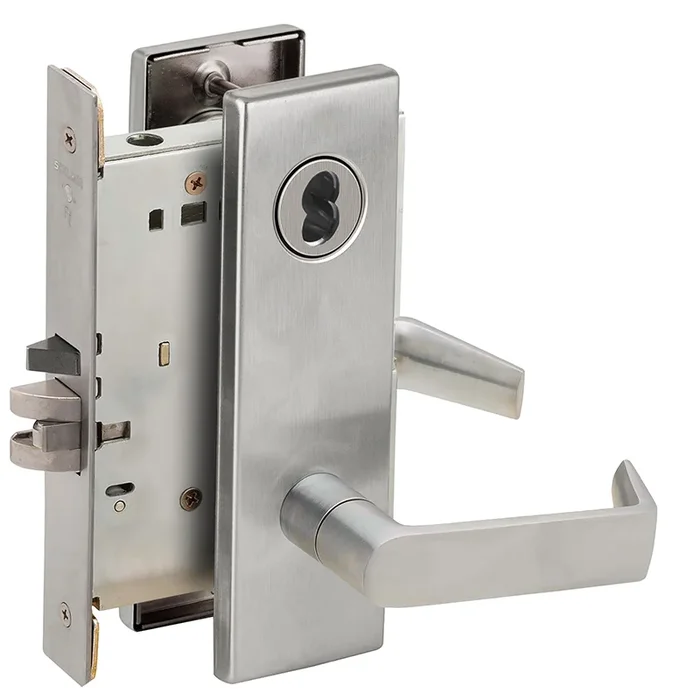

Schlage L9082J 06N 626 Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Institution – Latchbolt Retracted by Key From Either Side, Knob/Lever on Both Sides Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked,
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F30 – Asylum
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch
Bolt Protection: 3/4″
Cam Number: L583-255
Cam Type: Schlage L
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/2″
Cylinder Type: Schlage FSIC Less Core
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9082-Institution Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Latch Backset Dim: 2-3/4″
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 06 – Lever
Lever Knob Design Family: Straight Return Lever
Leverknob Design: 06 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function : Latchbolt retracted by key from either side. Knob/lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is closed.
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Projection: 2-1/2″
Rose Escutcheon Design: N – Escutcheon
Rose Escutcheon Dimensions: 8″ x 2-9/16″ x 7/16″
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 8″ x 2-9/16″ x 7/16″
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Strike: 10-072 Strike
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- 2020 Schlage Multi-Family Price Book
- 2020 Schlage Price Book
- 2022 Schlage Commercial Price Book
- L Series Mounting Plate Installation Instructions
- L Series Mounting Plate Installation Instructions
- L Series Product Catalog
- L-Series Mounting Plate
- L400 Installation Instructions
- L400 Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Indicator Lever with Escutcheon
- L9000 Indicator Lever with Sectional
- L9000 Installation Instructions
- L9000 Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage Finishes Chart
- Schlage L Indicator Data Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Catalog
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
Reviews
There are no reviews yet.
