Description

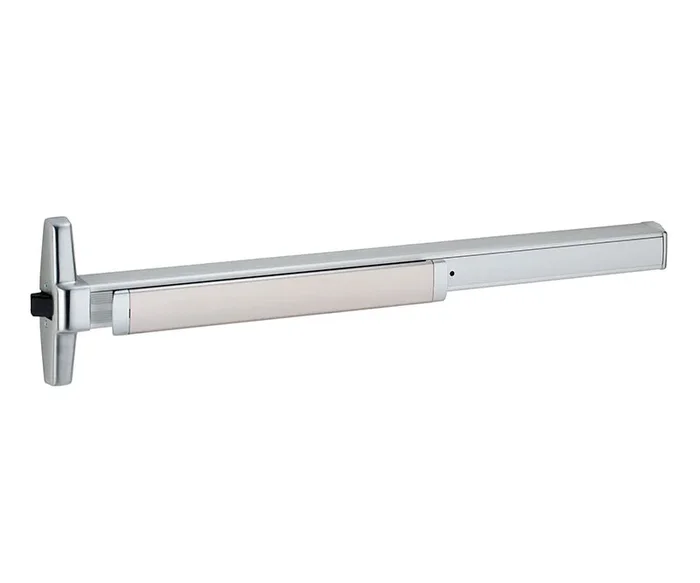

Von Duprin 35AL-06 3 US3 LHR Grade 1 Narrow Rim Exit Device 605
Von Duprin 35AL-06 3 US3 LHR Grade 1 Narrow Rim Exit 605 is designed for both commercial and residential applications, offering reliable security and ease of use. This narrow style rim exit device features a lever trim in a bright brass finish, ensuring both aesthetic appeal and durability. It is UL listed for panic exit hardware, meeting ANSI A156.3 – 2001 Grade 1 standards, making it a safe choice for high-traffic areas. The 35A model accommodates all types of single and double doors, including those with a mullion, and fits door stiles as narrow as 1 3/4 inches. It boasts a deadlocking latch bolt with a 3/4-inch throw for added security and hex key dogging for convenience. With a device length of 36 inches, it is suitable for doors ranging from 26 to 36 inches wide. This exit device is designed with a smooth mechanism case, and its non-handed feature allows for easy installation. The center case dimensions are 8 3/16″ x 1 9/16″ x 2 13/32″, ensuring compatibility with various door types. Backed by a limited 3-year warranty, the Von Duprin 35AL-06 is a dependable solution for enhancing safety and accessibility in any building.
Grade 1 Narrow Rim Exit 605
Narrow Style, Rim Exit Device, with Lever Trim, Bright Brass
33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. 33A/35A fits door stiles as narrow as 1 3/4″. Hex key dogging standard. Device Lengths: 3′ 2’4″ to 3′, 4′ 2’10” to 4′.
Devices are ANSI A156.3 – 2001 Grade 1.
The 35A has a smooth mechanism case andrim device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 3′ 2′ 4″ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm)
- Door size: Device centerline from finished floor 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with Mullion
- Center case dimensions: 8 3/16″ x 1 9/16″ x 2 13/32″ (208mm x 40mm x 62mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16″ (97 mm) Pushbar Depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3 /4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes 13 /4″ (44mm) – 2 1/4″ (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Attributes
Manufacturer surcharge: 4.5%
Base Material: Brass
Commercial Residential: Commercial
Cylinder Type: 1-1/4″ Mortise
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″
Door Width: 26″ to 36″
Finish: 605/US3
Fire Rated: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Lever Classroom
Minimum Stile Size: Narrow
Pack Qty: 1
Physical Appearance: Narrow Stile Pushpad
Reversible: Yes
Series: 35A Series Rim Exit Device
Ship Weight: 17 lbs.
Strike Standard: 1439
Subtype: Rim Exit Devices
Trim Design: 06 Lever
Trim Part No: 360L
Trim Type: Classroom Lever
Type: Exit Devices
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- EL for Exit Devices Data Sheet
- Exit Device Fire Label Specifications
- Intro to Door Hardware: Types of Panic Hardware
- Von Duprin 33A/35A & 98/99 Series Installation Instructions
- Von Duprin Finishes Chart
