Description

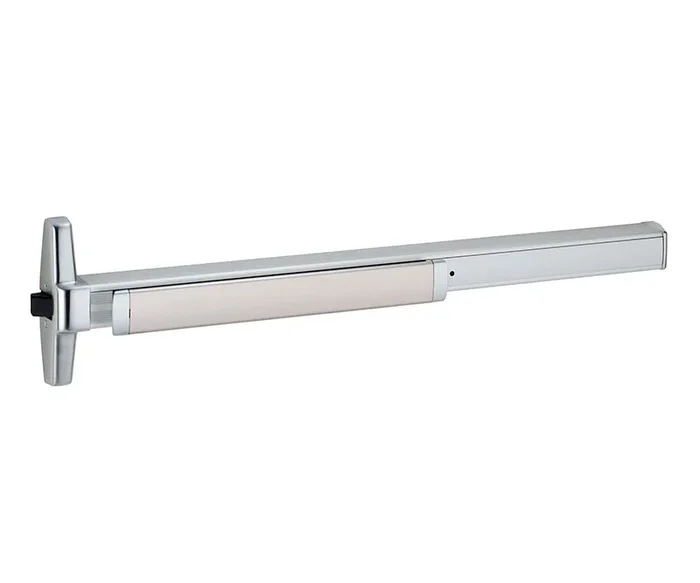

Von Duprin 35AL-17 3 313 LHR Grade 1 Narrow Rim Exit Device 710
Von Duprin 35AL-17 3 313 LHR Grade 1 Narrow Rim Exit 710 is a robust and reliable rim exit device designed for both commercial and residential applications. This narrow style device features a sleek lever trim and is finished in dark bronze anodized aluminum, ensuring both durability and aesthetic appeal. Compliant with ANSI A156.3 – 2001 Grade 1 standards, the 35A model is UL listed for panic exit hardware, making it an ideal choice for high-traffic areas where safety is paramount. It accommodates single and double doors, including those with mullions, and fits door stiles as narrow as 1 3/4″. The non-handed design simplifies installation, while the hex key dogging offers convenient operation. With device lengths ranging from 3′ 2’4″ to 3′ and a latch bolt with a 3/4″ throw, the 35A ensures secure closure and easy access. The center case dimensions are 8 3/16″ x 1 9/16″ x 2 13/32″, providing a compact solution that doesn’t compromise functionality. Additionally, the device is designed to work with metal or wood doors and includes standard fasteners for easy installation. For peace of mind, the Von Duprin 35AL-17 is backed by a three-year limited warranty, making it a smart investment for any building professional or knowledgeable homeowner.
Grade 1 Narrow Rim Exit 710
Narrow Style, Rim Exit Device, with Lever Trim, Dark Bronze Anodized Aluminum
33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. 33A/35A fits door stiles as narrow as 1 3/4″. Hex key dogging standard. Device Lengths: 3′ 2’4″ to 3′, 4′ 2’10” to 4′.
Devices are ANSI A156.3 – 2001 Grade 1.
The 35A has a smooth mechanism case andrim device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 3′ 2′ 4″ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm)
- Door size: Device centerline from finished floor 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with Mullion
- Center case dimensions: 8 3/16″ x 1 9/16″ x 2 13/32″ (208mm x 40mm x 62mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16″ (97 mm) Pushbar Depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3 /4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes 13 /4″ (44mm) – 2 1/4″ (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Attributes
Manufacturer surcharge: 4.5%
Base Material: Aluminum
Commercial Residential: Commercial
Cylinder Type: 1-1/4″ Mortise
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″
Door Width: 26″ to 36″
Finish: 313
Fire Rated: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Lever Classroom
Minimum Stile Size: Narrow
Pack Qty: 1
Physical Appearance: Narrow Stile Pushpad
Reversible: Yes
Series: 35A Series Rim Exit Device
Ship Weight: 17 lbs.
Strike Standard: 1439
Subtype: Rim Exit Devices
Trim Design: 17 Lever
Trim Part No: 360L
Trim Type: Classroom Lever
Type: Exit Devices
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- EL for Exit Devices Data Sheet
- Exit Device Fire Label Specifications
- Intro to Door Hardware: Types of Panic Hardware
- Von Duprin 33A/35A & 98/99 Series Installation Instructions
- Von Duprin Finishes Chart
