Description

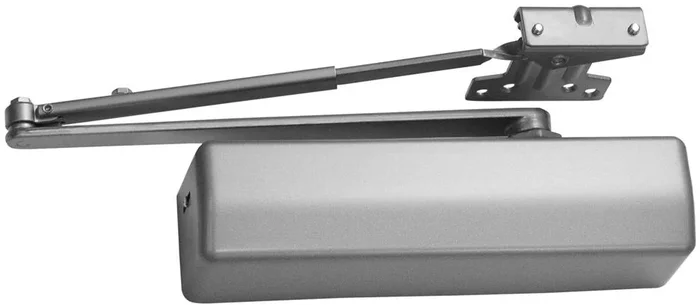

Corbin Russwin DC6210689-M54 Grade 1 Adjustable Parallel Arm Door Closer, Aluminum Finish
Corbin Russwin DC6210689M54 Grade 1 Parallel Arm Adjustable Door Closer with Sex Nuts and Bolts in an elegant aluminum finish delivers unmatched durability and performance for commercial and institutional facilities. This heavy-duty door closer is equipped with a forged arm and features a spring-adjustable mechanism, allowing for precise control over door closure speed and force. Designed for easy installation, the DC6210689M54 includes a Quik-Install bracket and self-drilling screws, ensuring a hassle-free setup. The captured valves provide enhanced functionality, making adjustments straightforward and maintaining consistent performance. With dimensions of 3″ x 11-5/8″ x 2-3/4″, it fits seamlessly into various applications while adhering to UL / ULC / UL10C listings for safety and reliability. This surface-mounted closer supports push-side mounting and accommodates a 1-6 adjustable spring size, making it versatile for different door types. With a limited 25-year warranty, you can trust in its longevity and quality. Ideal for environments where both aesthetics and functionality are paramount, the Corbin Russwin DC6210689M54 ensures your doors operate smoothly while enhancing the overall look of your space.
Grade 1 Parallel Arm Adjustable Door Closer with Sex Nuts and Bolts Aluminum Finish
Since the early 1800’s, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
- Heavy-duty forged arm
- Spring-adjust
- Captured valves
- Self-drilling screws
- Quik-Install™ bracket
- Cast iron body
- Retrofit plates
- Powder painted arms
- Heavy Duty Forged Arm
- Spring Adjust
- Captured Valves
- Self Drilling Screws
- Quik-Install Bracket
Attributes
Alternate Codes: 103743, 460089, CORDC6210-689-M54, CORDC6210689, DC2210689, DC6210-689-M54, DC6210689, DC6210689-M54, DC6210689M54
Arm Function: Non-Hold Open
Arm Type: Double Lever Arm with PA Bracket
Back Check: Adjustable
Base Material: Varies
Body Type: Cast Iron
Bracket: Available
Category: Door Closers and Accessories
Cement Case: No
Closer Size: Adj. 1 to 6
Closer Type: Mechanical, Surface
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Plastic Cover
Degree Swing: 180 Deg.
Dimension: 3″ x 11-5/8″ x 2-3/4″
Door Application: Door Closers
Drop Plate: Available
Fasteners: Sex Bolts
Finish: Aluminum
Finish Code: 689
Finish Color: Satin Aluminum
Finish : Aluminum Painted
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Installation: Commercial
Limited Warranty: 25 Years
Manufacturer Warranty: Limited 25 Year Warranty
Material: Cast Iron
Maximum Opening: 180°
Mounting: Parallel Arm
Mounting Group: Hydraulic
Mounting Hole Pattern: 1″ x 4-5/16″ Rectangular Mounting
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Options: SNB
Order_ Qty: 1
PO date: 2024-10-07
Pack Height: 3.88″
Pack Height 2: 14.25″
Pack Length: 13.75″
Pack Length 2: 15″
Pack Qty: 1
Pack Volume: 392.95 in³
Pack Volume 2: 1656.56 in³
Pack Width: 7.38″
Pack Width 2: 7.75″
Physically Handicapp: Yes
Screw Type: Self Tapping
Sealed Closer: Yes
Series: DC6200 Series
Ship Weight: 10.1 lbs.
Spacer: Available
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Spring Tension: Adjustable 1 – 6
Subcategory: Surface Mount Closers
Subtype: Surface Mount
Supplier: Corbin Russwin
Through Bolts: Yes
Type: Surface
Ul Listing Type: UL / ULC / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Voltage: Mechanical
