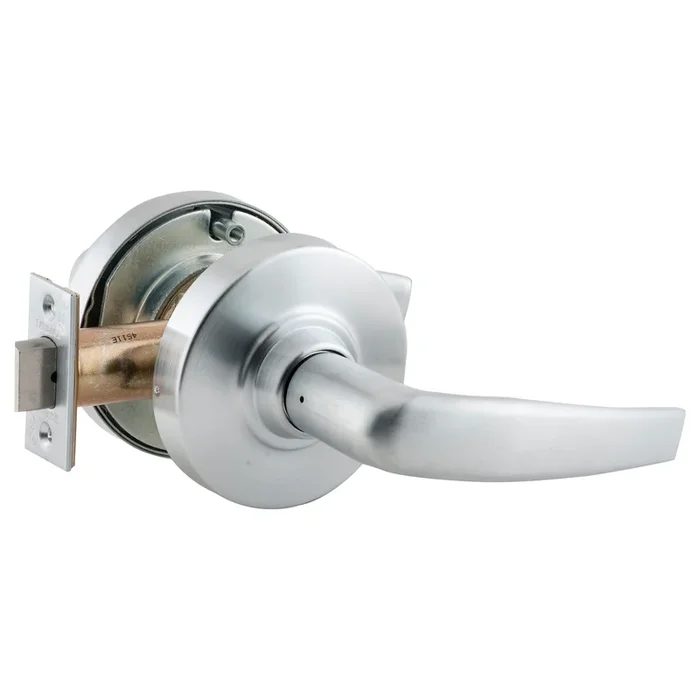

Schlage ND10SATH626 Lock Cylindrical Lock
Both levers always unlocked
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness:
- 1-5/8″ to 2-1/8″ (41mm–54mm) standard including Vandlgard® functions.
- 1-3/4″ – 2″ for function ND85.
- Backset: 2-3/4″ (70 mm) standard. 2-3/8″, 3-3/4″ and 5″ (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1-1/8″ x 2-1/4″ (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2″ (12mm) throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1-1/4″ x 4-7/8″ x 1-3/16″ lip to center standard. Optional strikes, lip lengths and ANSI strike box available.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 133178, D10SATH626, ND10SATH626
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F75 – Passage
Ansi Function : Passage
Baa Qualified: Yes
Backset: 2-3/4″
Bolt Projection: 1/2″
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8″
Door Thickness: 1-5/8″ – 2-1/8″
Door Thickness Max: 2-1/8″
Door Thickness Min: 1-5/8″
Finish: 626/US26D
Finish Code: 626
Finish Color: Satin Chrome
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 180 min
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Knob/ Lever Design: Athens
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4″ x 1-1/8″
Latch Bolt Throw: 1/2″
Latch Bolt Type: Springlatch
Latch Bore Diameter: 1″
Latch Number: 13-248
Latch Type: Spring Latch (Unguarded)
Lever Design: Athens
Lever Knob: Lever
Lever Knob Design: ATH – Athens
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH – Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Passage Latch
Manufacturer Function : Both levers always unlocked. Inside lever is always free for immediate egress.
Maximum Door Thickness: 2-1/8″
Minimum Door Thickness: 1-5/8″
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Product Length: 6.28″
Product Width: 3.31″
Projection: 3-5/16″
Restricted Keyway: No
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Rose/ Escutcheon Size: 3-7/16″
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 10-025
Strike Size: 4-7/8″ x 1-1/4″
Strike Type: ASA
Strike Width: 1-1/4″
Structure Function: 10
Structure Latch: S
Structure Latch Number: 13-248
Structure Outside Finish: 626
Structure Outside Trim: ATH
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Supplier: Schlage
Type: LOCK SETS
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
