Description

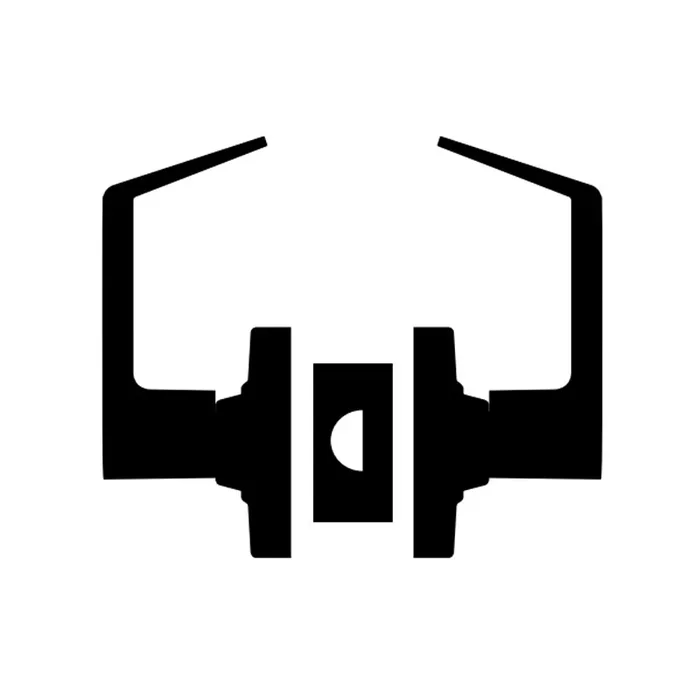

Schlage ND10S RHO 625 Lock Cylindrical Lock
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: SCHND10SRHO 625, SCHND10SRHO625
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F75 – Passage
Ansi Function : Passage
Baa Qualified: Yes
Bolt Projection: 1/2″
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Application: Cylindrical Levers
Door Thickness: 1-5/8″ – 2-1/8″
Finish: 625/US26
Finish Code: 625
Finish Color: Bright Chrome, Polished Chrome
Finish : Bright Chrome
Finish Family: Polished Silver
Fire Rated: Yes
Fire Rating: 180 min
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 1
Hand: Not Handed
Handing: Non-Handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1″
Latch Number: 13-248
Latch Type: Spring Latch (Unguarded)
Lever Design: Rhodes
Lever Knob: Lever
Lever Knob Design: RHO – Rhodes
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO – Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Passage Latch
Manufacturer Function : Both levers always unlocked. Inside lever is always free for immediate egress.
Maximum Door Thickness: 2-1/8″
Minimum Door Thickness: 1-5/8″
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Product Height: 3.44″
Product Length: 6.28″
Product Width: 2.94″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Combination
Series: ND
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 13-248
Std Latch Type: Springlatch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8″
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4″
Structure Function: 10
Structure Latch: S
Structure Latch Number: 13-248
Structure Outside Finish: 625
Structure Outside Trim: RHO
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
