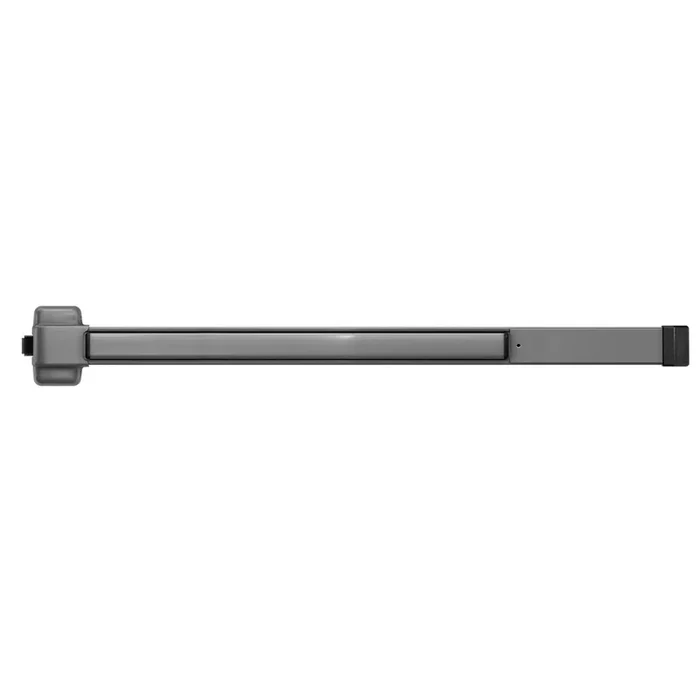

Von Duprin 22TP 4 689 Grade 1 Rim Exit Bar SP28
Von Duprin 22TP 4 689 Grade 1 Rim Exit Bar SP28 is a robust, reliable exit device designed for both single and double doors, including those with mullions. This Grade 1 Rim Exit Device features a wide stile pushpad that is easily accessible, measuring 48 inches, and is equipped with a classroom auxiliary thumbturn control for added convenience. The device is UL listed for panic exit hardware, ensuring safety and compliance in emergency situations. Engineered to accommodate stock hollow metal doors with 161 cutouts, the 22TP fits door stiles as narrow as 3 13/16 inches (97 mm). Its non-handed design allows for versatile installation, making it suitable for various door configurations. The deadlocking latch bolt offers a reliable ¾-inch throw, while hex key dogging provides a simple mechanism for securing the device when required. With a durable aluminum painted finish, this exit device is built to withstand the rigors of commercial environments. It includes a thumbpiece pull and is compatible with multiple functions, shipping ready for EO, DT, NL, TP, K, and L configurations. Overall, the Von Duprin 22TP 4 689 is a dependable choice for enhancing safety and ease of access in any building.
Grade 1 Rim Exit Bar SP28
Grade 1 Rim Exit Device, Wide Stile Pushpad, 48″, Classroom Auxiliary Thumbturn Control, Thumbpiece Pull, Hex Key Dogging, Aluminum Painted Finish, Non-Handed
22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16″ (97 mm). The device is non-handed.
Rim exit device for all types of single and double doors with mullion.
Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3′ (914 mm),4′ (1219 mm)
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 4 1/4″ (108 mm) x 1 3/8″ (41 mm) x 2 3/8″ (60 mm)
- Mechanism case dimensions: 2″ (51 mm) x 3 3/4″ (95 mm)
- Projection push bar: Push bar neutral – 3 3/4″ (95 mm) push bar depressed – 3″ (76 mm)
- Latch bolt: Deadlocking, 3 /4″ (19 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood & metal doors optional SNB available for device
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: GBK glass bead kit AX accessible device
- Dogging feature:Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2008
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 48″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 26-1/2″ to 36″
Finish: 689
Finish B Base Material: 689
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: 3-13/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49.25″
Pack Length 2: 49.75″
Pack Qty: 1
Pack Volume: 2585.63 in³
Pack Volume 2: 9353 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 4.25″
Product Length: 45.13″
Product Width: 3.75″
Restrictions: No
Reversible: Yes
Series: 22 Series Rim Exit Device
Ship Weight: 16 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Thumbpiece Pull
Trim Part No: 230TP 689
Trim Type: Auxiliary Thumbturn Control
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 22 Rim Exit Device Service Manual
- 22 Series Rim Exit Device Cut Sheet
- 22 Series Wood Door Template
- EL for Exit Devices Data Sheet
- Exit Device Fire Label Specifications
- Von Duprin 22 ALK Alarm Kit Installation Instructions
- Von Duprin 22 Rim Device Installation Instructions
- Von Duprin 22 Rim Device Installation Instructions (French)
- Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
- Von Duprin Finishes Chart
