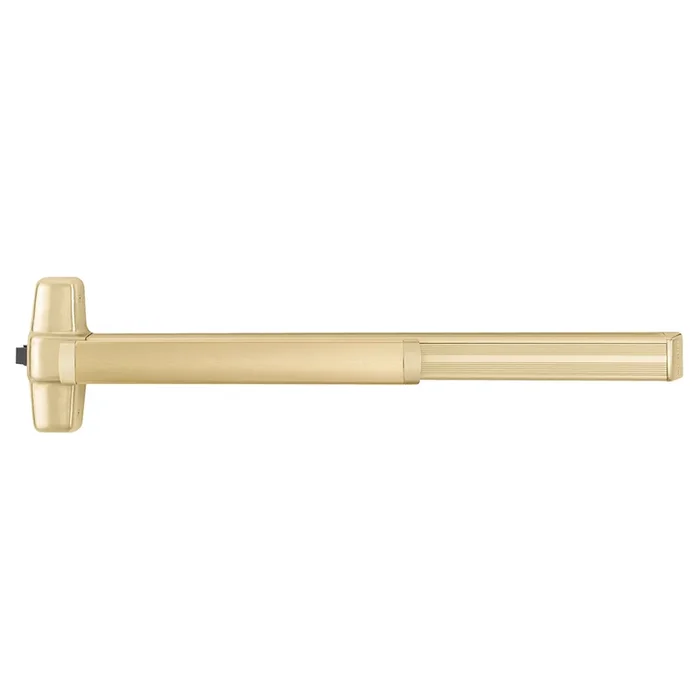

Von Duprin 99L-BE-06-F 4 US4 LHR Grade 1 Rim Exit Device 606
Von Duprin 99L-BE-06-F 4 US4 LHR Grade 1 Rim Exit Device 606 is a heavy-duty exit solution designed for both commercial and residential applications. With a Grade 1 rating and UL listing for panic exit hardware, this device ensures reliable performance under pressure. Its wide stile pushpad design and 48-inch length make it suitable for a variety of single and double doors, providing a quick and efficient exit while maintaining safety standards. The device features a less dogging mechanism, ensuring simplicity and ease of use. Its satin brass finish not only adds an elegant touch but also enhances durability, making it a practical choice for high-traffic areas. With field reversible handing, installation is straightforward, accommodating various door configurations. Measuring 39 13/16 inches from the finished floor to the centerline, it is ideal for standard door heights. The deadlocking latch bolt offers a robust 3/4-inch throw, enhancing security. Additionally, this exit device is compatible with metal or wood doors ranging from 1-3/4 inches to 2-1/4 inches thick, ensuring versatility in various building environments. Choose the Von Duprin 99L-BE-06-F for a dependable, stylish, and compliant exit solution that meets the demands of modern construction.
Grade 1 Rim Exit Device 606
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48″ Device, Passage Function, 06 Lever with Escutcheon, Less Dogging, Satin Brass Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 34″ – 48″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Passage
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 45″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 18 lbs.
Strike Standard: 299F
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-BE-06-R/V US4 LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
