Description

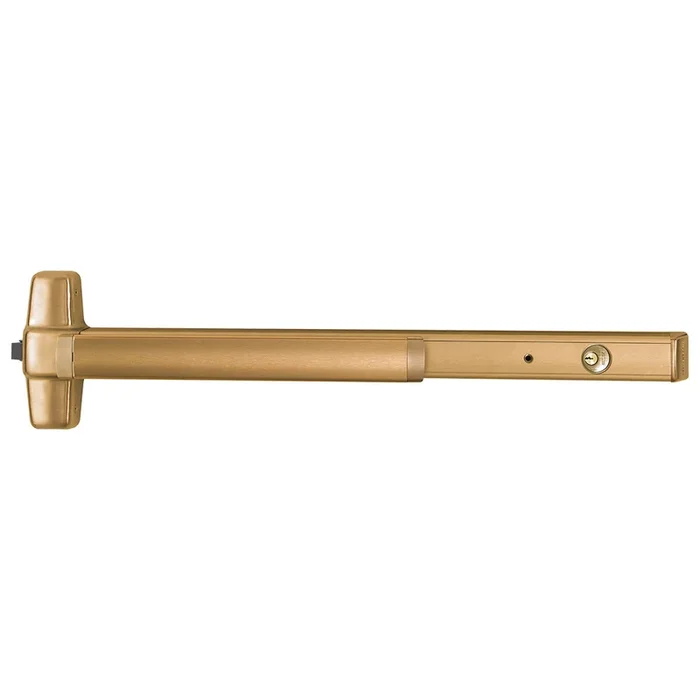

Von Duprin CXA98EO 3 10 Grade 1 Rim Exit Device 610
Von Duprin CXA98EO 3 10 Grade 1 Rim Exit Device 610 offers a reliable solution for emergency exits in commercial settings. This Grade 1 Delayed Egress Exit Device, designed for a 36″ length, is exit-only and features a satin bronze clear-coated finish, ensuring durability and aesthetic appeal. Non-handed, it fits a variety of single and double doors, making it a versatile choice for diverse applications. The 98 Series Exit Devices are recognized for their heavy-duty construction and high performance, adhering to ANSI A156.3 – 2008 Grade 1 standards. Ideal for use in schools, hospitals, and government buildings, the device includes a deadlocking latch bolt with a 3/4″ throw, providing secure functionality. Its wide stile push pad is designed for ease of use, ensuring quick egress during emergencies. With customizable options and the ability to accommodate door sizes from 28″ to 36″ wide, the Von Duprin CXA98EO is a robust and adaptable solution. It ships with a screw pack for both metal and wood doors, ensuring straightforward installation. For professionals seeking reliability and compliance, this exit device is UL listed and equipped with a delayed egress feature, enhancing safety without sacrificing convenience.
Grade 1 Rim Exit Device 610
Grade 1 Delayed Egress Exit Device, 36″ Length, Exit Only, Less Dogging, Delayed Egress, Satin Bronze Clear Coated Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Electric Options: Delayed Egress
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299
Subtype: Delayed Egress Exit Devices
Trim Design: Blank Plate
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
