Description

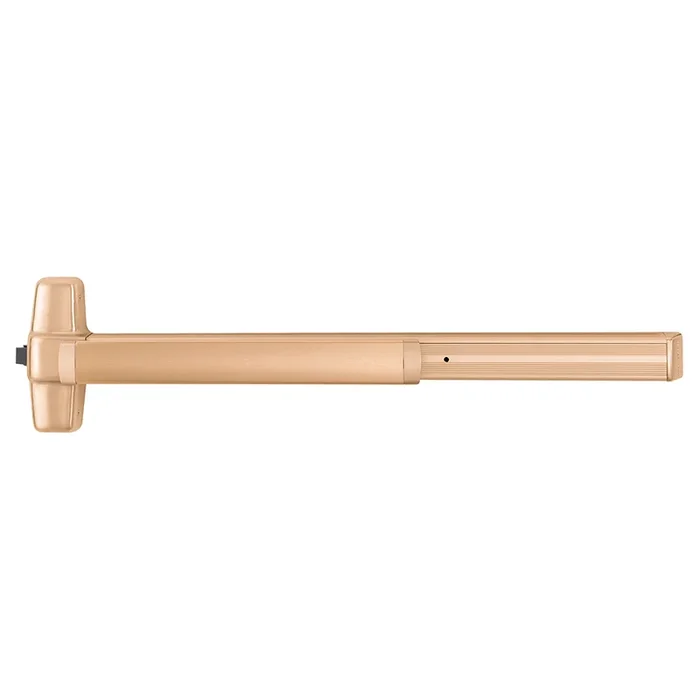

Von Duprin 99L-06 4 US10 RHR Grade 1 Rim Exit Device 612
Von Duprin 99L-06 4 US10 RHR Grade 1 Rim Exit Device 612 combines robust security with user-friendly design. This Grade 1 rim exit bar features a wide stile pushpad, measuring 48 inches, making it ideal for both single and double doors, including those with a mullion. Designed for commercial applications, it meets ANSI A156.3 – 2008 standards, ensuring reliable performance. The device showcases a classroom function with a stylish 06 lever and escutcheon, adding a touch of elegance to any entryway. Hex key dogging enhances security while allowing for easy operation, and its satin bronze clear coated finish not only provides durability but also contributes to aesthetic appeal. The field-reversible mechanism simplifies installation and adjustment, accommodating various door configurations. With a deadlocking latch bolt boasting a 3/4 inch throw, the 99L-06 offers peace of mind for high-traffic environments. The heavy-duty construction features grooved mechanism cases, guaranteeing longevity and reliability. This exit device is UL listed for panic exit hardware, making it a trusted choice for safety compliance. Enhance your building’s security and accessibility with the Von Duprin 99L-06, where innovation meets functionality.
Grade 1 Rim Exit Device 612
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48″ Device, Classroom Function, 06 Lever with Escutcheon, Hex Key Dogging, Satin Bronze Clear Coated Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 48″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 34″ – 48″
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 45″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 21 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-06-R/V US10 RHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
