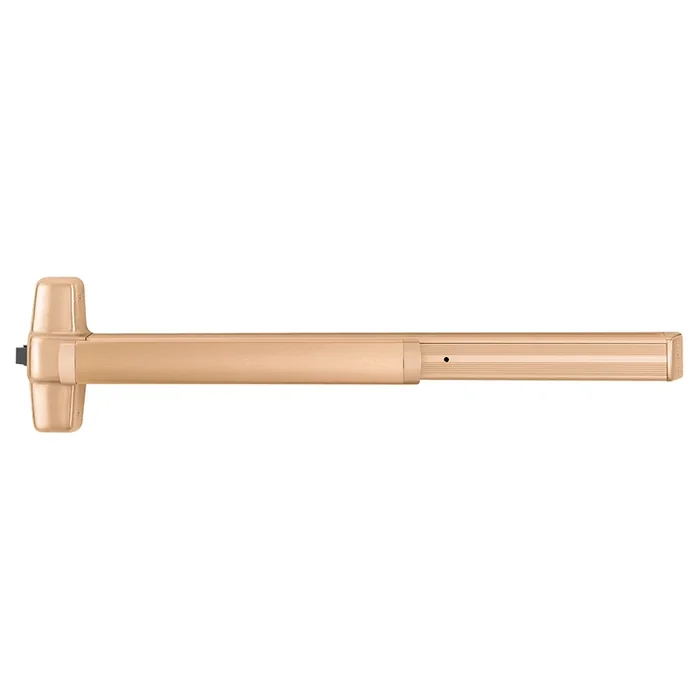

Von Duprin 99L-NL-03 3 US10 RHR Grade 1 Rim Exit Device 612
Von Duprin 99L-NL-03 3 US10 RHR Grade 1 Rim Exit Device 612 offers a robust and reliable solution for ensuring safe egress in various commercial settings. This Grade 1 Rim Exit Bar features a wide stile pushpad and measures 36 inches, making it suitable for both single and double doors, even with a mullion. Equipped with a night latch function and hex key dogging, this exit device is designed for consistent performance and security. The heavy-duty construction, with grooved mechanism cases, guarantees durability, while the satin bronze clear coated finish adds an elegant touch to your door hardware. Field reversible for easy installation, the device meets ANSI A156.3 – 2008 standards and is UL listed for panic exit hardware, ensuring compliance and safety. The deadlocking latch bolt boasts a 3/4-inch throw, providing added security. Installation is straightforward, as it includes a comprehensive screw pack for both metal and wood doors. With a device centerline height of 39 13/16 inches, the Von Duprin 99L-NL-03 is engineered for convenience and functionality, making it an ideal choice for professionals seeking reliable exit solutions.
Grade 1 Rim Exit Device 612
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Night Latch Function, 03 Lever with Escutcheon, Hex Key Dogging, Satin Bronze Clear Coated Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ – 36″
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 19 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-03-R/V US10 RHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
