Description

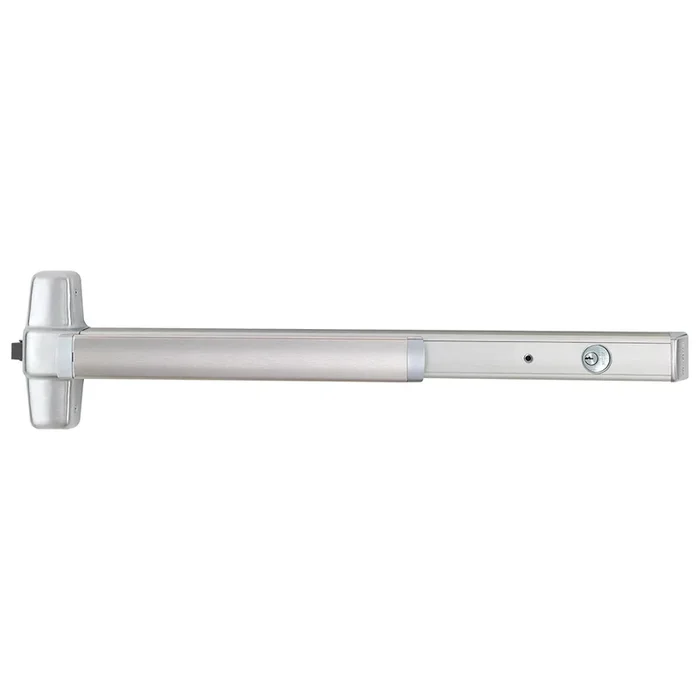

Von Duprin CXA98NL-OP 3 26D Grade 1 Rim Exit Device – 626
Von Duprin CXA98NL-OP 3 26D Grade 1 Rim Exit Device 626 is a top-tier choice for delayed egress applications, designed with the utmost reliability and security in mind. This Grade 1 exit device features a 36″ length and a satin chrome finish, ensuring both durability and aesthetic appeal. The non-handed design allows for versatile installation on various door types, while the night latch functionality enhances security, making it ideal for high-traffic environments such as schools, hospitals, and government buildings. Engineered to meet ANSI A156.3 2008 Grade 1 standards, this heavy-duty push pad exit device is built to withstand the rigors of daily use. The deadlocking latch bolt offers a robust 3/4″ throw, ensuring secure closure. With customizable options available, the Von Duprin CXA98NL-OP can adapt to your specific requirements. This exit device supports door sizes from 28″ to 36″ in width, accommodating both metal and wood construction with a thickness range of 1-3/4″ to 2-1/4″. The UL listing guarantees compliance with safety standards, making it a reliable choice for your commercial security needs. Choose the Von Duprin CXA98NL-OP for a blend of performance, durability, and style in your door hardware solutions.
Grade 1 Rim Exit Device 626
Grade 1 Delayed Egress Exit Device, 36″, Night Latch, Less Dogging, Delayed Egress, 1-1/4″ Mortise & Rim, Satin Chrome Finish, Non-Handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise & Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Electric Options: Delayed Egress
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299
Subtype: Delayed Egress Exit Devices
Trim Design: Blank Plate
Trim Part No: 110NL/MD
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
