Description

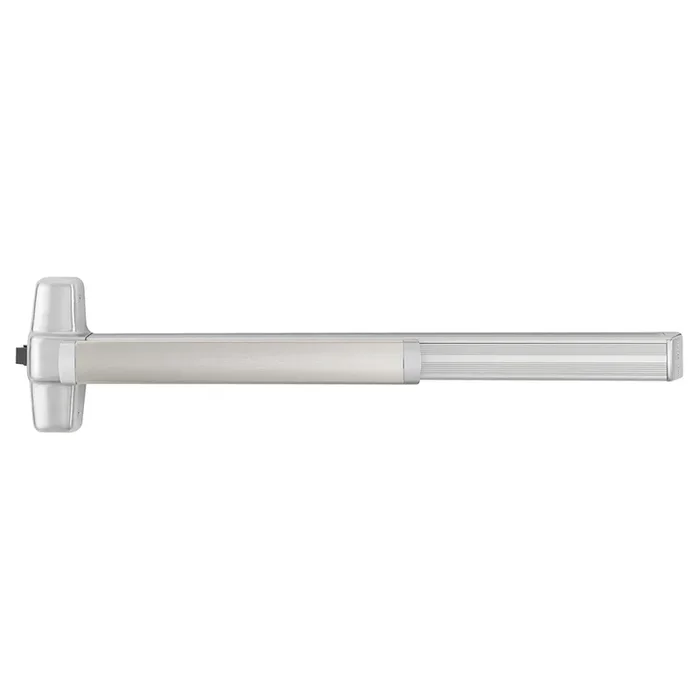

Von Duprin RXQEL99L-DT-06 3 26D LHR Grade 1 Rim Exit Device – 626
Von Duprin RXQEL99L-DT-06 3 26D LHR Grade 1 Rim Exit Device 626 is engineered for durability and reliability in commercial settings. This Grade 1 rim exit device features a wide stile pushpad and a 36-inch device length, ensuring ease of use and quick egress in emergencies. The satin chrome finish not only enhances its sleek appearance but also provides resistance to wear and tear. Designed for both single and double doors, this device is UL listed for panic exit hardware, meeting ANSI A156.3 standards. Its motorized latch retraction allows for seamless operation, while the request to exit switch ensures compliance with safety regulations. The device is field reversible, accommodating various door configurations without hassle. With a robust deadlocking latch bolt that offers a 3/4-inch throw, the RXQEL99L-DT-06 ensures security while allowing for smooth operation. The heavy-duty construction is complemented by grooved mechanism cases, making it ideal for high-traffic environments. This exit device is compatible with 1-3/4-inch to 2-1/4-inch thick doors, suitable for both metal and wood materials. Incorporating the Von Duprin RXQEL99L-DT-06 means investing in a reliable exit solution that prioritizes safety, functionality, and aesthetics for any commercial space.
Grade 1 Rim Exit Device 626
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Dummy Function, 06 Lever with Escutcheon, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Satin Chrome Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ – 36″
Electric Options: Motorized Latch Retraction
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Dummy
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 19 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Trim Design: Lever with Escutcheon
Trim Part No: 996L-DT-06-R/V 26D LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
