Description

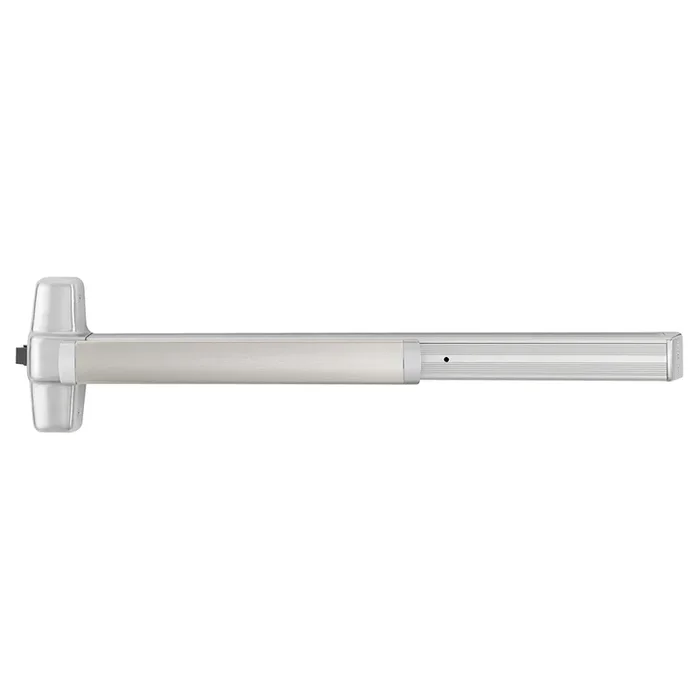

Von Duprin RX99EO 3 US28 Grade 1 Rim Exit Device 628
Von Duprin RX99EO 3 US28 Grade 1 Rim Exit Device 628 is designed for commercial applications requiring reliable and efficient egress solutions. This Grade 1 rim exit device features a wide stile pushpad and is 36 inches long, making it suitable for both single and double doors. The exit-only design incorporates a request-to-exit switch and utilizes hex key dogging for ease of use. Constructed for durability, the RX99EO is UL listed for panic exit hardware and complies with ANSI A156.3 – 2008 standards. With a deadlocking latch bolt that offers a 3/4 inch throw, this device ensures secure closure while facilitating quick exits. Its non-handed configuration allows for versatile installation, accommodating various door setups. The satin aluminum clear anodized finish provides both aesthetic appeal and resistance to wear. This device is compatible with doors made of metal or wood, with thicknesses ranging from 1-3/4 inches to 2-1/4 inches. The RX99EO is a robust choice for high-traffic areas, ensuring safety and compliance without compromising style.Whether upgrading an existing system or outfitting new construction, the Von Duprin RX99EO offers peace of mind and functionality, making it an essential component for any commercial space.
Grade 1 Rim Exit Device 628
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Exit Only, Less Trim, Request to Exit Switch, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Non-handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ – 36″
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-5/8″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: No
Series: 99 Series Rim Exit Device
Ship Weight: 14 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Trim Design: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
