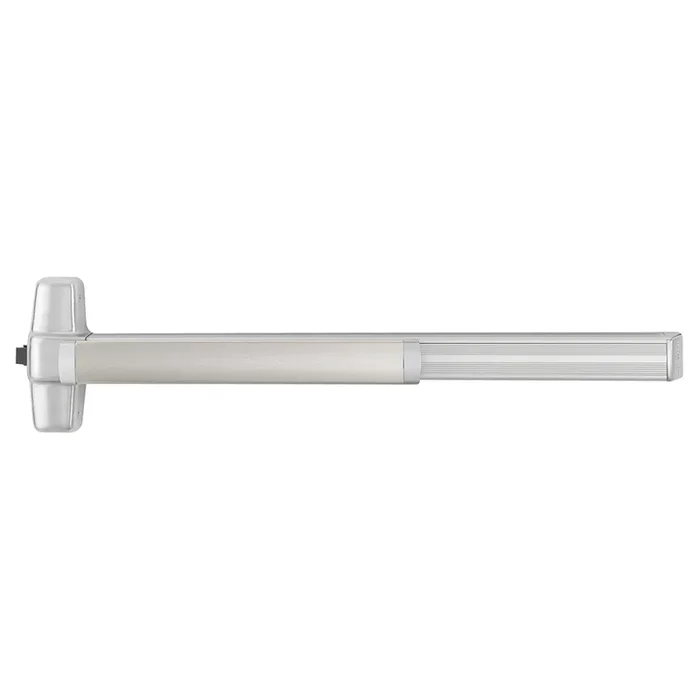

Von Duprin 99L-BE-06-F 3 US28 LHR Grade 1 Rim Exit Device 628
Von Duprin 99L-BE-06-F 3 US28 LHR Grade 1 Rim Exit Device 628 is engineered for high-performance security, making it an ideal choice for both commercial and residential applications. This Grade 1 rim exit bar features a wide stile pushpad and a 36″ device length, ensuring ease of use during emergency exits. The passage function and 06 lever with escutcheon offer a sleek design while maintaining functionality. Constructed from heavy-duty materials, this exit device is UL listed for panic exit hardware and meets ANSI A156.3 – 2008 standards. Its field-reversible design allows for versatile installation on both single and double doors, accommodating door widths from 28″ to 36″ and thicknesses between 1-3/4″ and 2-1/4″. The deadlocking latch bolt features a 3/4″ throw, providing added security. The satin aluminum clear anodized finish not only enhances its aesthetic appeal but also ensures durability against wear and tear. This model ships with a screw pack for easy installation and includes a lever trim for added convenience. Additionally, it boasts a three-year limited warranty, underscoring its reliability. Choose the Von Duprin 99L-BE-06-F for trusted performance in emergency egress solutions.
Grade 1 Rim Exit Device 628
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Passage Function, 06 Lever with Escutcheon, Less Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ – 36″
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Passage
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 16 lbs.
Strike Standard: 299F
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-BE-06-R/V 26D LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
