Description

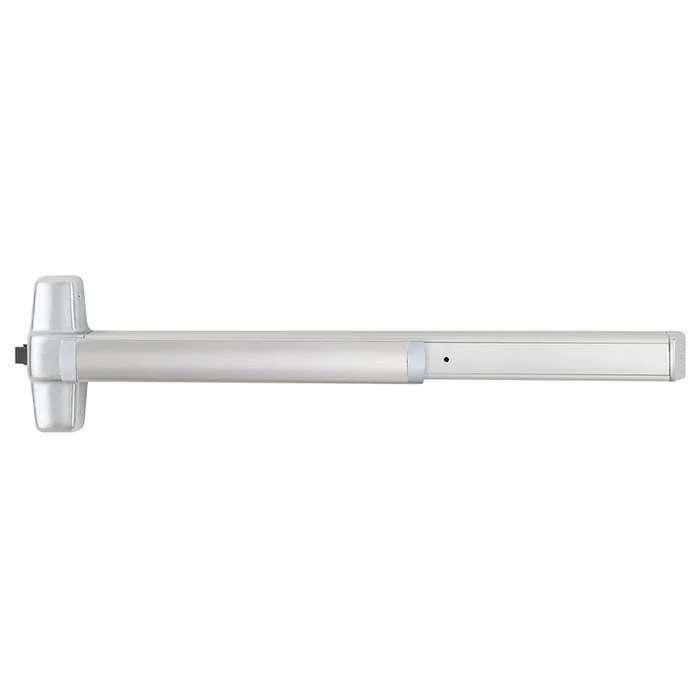

Von Duprin 98L-NL-17 3 32D LHR Grade 1 Rim Exit Device 630
Von Duprin 98L-NL-17 3 32D LHR Grade 1 Rim Exit Device 630 delivers robust security and accessibility for a variety of commercial settings. Designed for single and double doors, this Grade 1 exit device features a 36-inch length and a night latch mechanism, ensuring quick egress in emergency situations. The hex key dogging function enhances security while allowing easy operation. Crafted from satin stainless steel, the 98 Series boasts a sleek, matte silver finish that complements any architectural style. Its heavy-duty construction meets ANSI A156.3 2008 Grade 1 standards, making it ideal for high-traffic environments such as schools, hospitals, and government buildings. The device is UL listed for panic exit hardware, providing peace of mind regarding safety compliance. This exit device accommodates door thicknesses of 1-3/4″ to 2-1/4″ and can be installed on both wood and metal doors. Its left-hand reverse handing and wide stile pushpad design ensure ease of use for all building occupants. Included with the device is a complete screw pack for installation, further simplifying the process. With a limited 3-year warranty, the Von Duprin 98L-NL-17 is a reliable choice for secure and efficient access control.
Grade 1 Rim Exit Device 630
Grade 1 Rim Exit Device, 36″, Night Latch, Hex Key Dogging, 17 Lever, 1-1/4″ Mortise & Rim, Satin Stainless Steel Finish, Left-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4″ Mortise & Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left-Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Reversible: Yes
Series: 98 Series Rim Exit Device
Ship Weight: 19 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-17-R/V 26D LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
