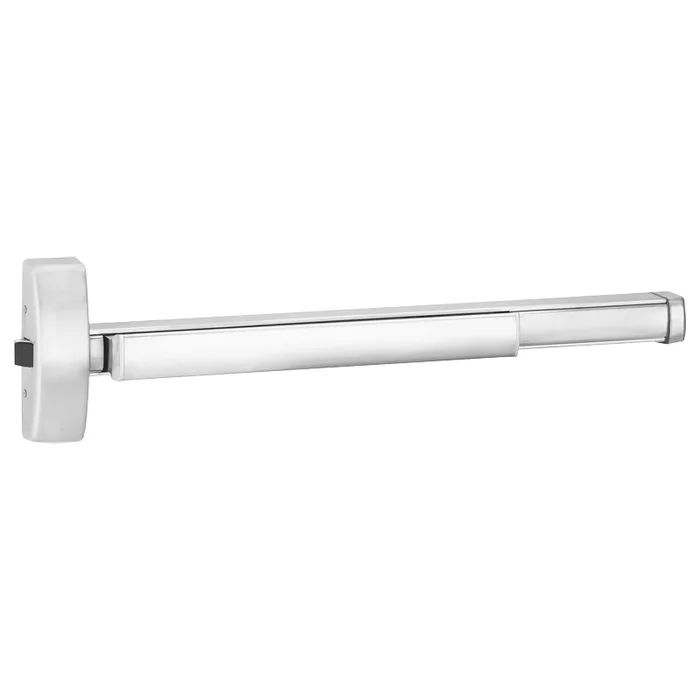

PHI DE2103 630 36 Grade 1 Rim Exit Device Instructions
PHI DE2103 630 36 Grade 1 Rim Exit Device combines security and functionality, making it an ideal choice for both commercial and institutional settings. This Grade 1 exit device features a wide stile pushpad design and is certified to ANSI A156.3 Grade 1, ensuring reliability and durability. Measuring 36 inches, it is equipped with a storeroom function and a delayed egress feature that activates after 15 seconds, providing an additional layer of safety. Constructed from heavy wrought stainless steel with a sleek satin finish, this exit device is not only robust but also aesthetically pleasing, making it a preferred choice among architects and facility managers alike. Its field-reversible design allows for easy installation on various door types, accommodating thicknesses from 1-3/4 inches to 2-1/4 inches and widths up to 3 feet. The PHI DE2103 is UL listed for panic and fire hardware, conforming to UL10C and UBC 7-2 standards, which adds to its credibility in emergency situations. With a stainless steel deadlocking latchbolt and hex key dogging option, it offers convenience without compromising security. Invest in the PHI DE2103 for a reliable exit solution that meets the demands of modern building safety standards.
Grade 1 Rim Exit Device
Grade 1 Rim Exit Device, Wide Stile Pushpad, 36″ Device, Storeroom Function, Delayed Egress Device 15 Seconds, Satin Stainless Steel Finish, Field Reversible
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
DOORS – For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS – Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER – Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS – Investment Cast Steel, Zinc Dichromated.
LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw. STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT – 39-15/16″ from floor standard. May be varied as situation dictates. R
EVERSIBLE – Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED – Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES – 605, 606, 612, 613, 625, 628, 630
Attributes
Manufacturer surcharge: 7.0%
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: All Types
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 3′
Electric Options: Delayed Egress Device 15 Seconds
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Field Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2100 Series Apex Rim Exit Devices
Strike Standard: S300
Subtype: Rim Exit Devices
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
