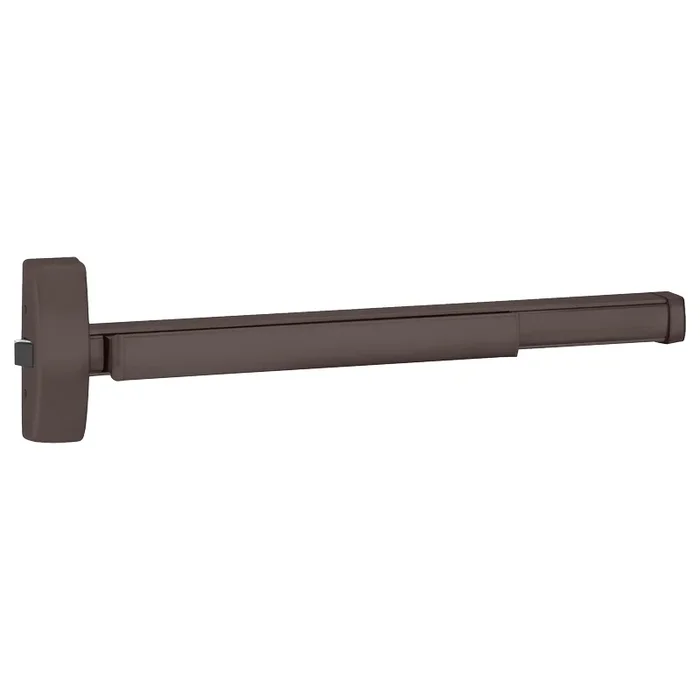

PHI ELRFL2103 613 36 Grade 1 Rim Exit Device Instructions
PHI ELRFL2103 613 36 Grade 1 Rim Exit Device offers unparalleled security and reliability for both commercial and residential applications. Designed with a storeroom function, this Grade 1 fire-rated exit device features a wide stile pushpad and electric latch retraction, ensuring quick and easy egress without compromising safety. The device is finished in a dark oxidized satin bronze oil-rubbed style, providing an elegant aesthetic to any door setup. Ideal for all types of single and double doors, the ELRFL2103 accommodates door thicknesses from 1-3/4″ to 2-1/4″ and is suitable for openings up to 4′-0″ wide. Its robust construction includes heavy wrought brass, bronze, or stainless steel components, ensuring long-lasting durability and performance. The chassis is made from investment cast steel, further enhancing its strength. Field reversible for easy installation, this exit device meets ANSI/BHMA A156.3 Grade 1 certification and is UL listed for panic and fire hardware, conforming to both UL10C and UBC 7-2 standards. The standard touchbar height of 39-15/16″ can be adjusted as needed. With a limited one-year warranty, the PHI ELRFL2103 is a trusted choice for architects and builders prioritizing quality and safety in their projects.
Grade 1 Rim Exit Device
Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, 36″ Device, Storeroom Function, Electric Latch Retraction, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
DOORS – For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS – Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER – Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS – Investment Cast Steel, Zinc Dichromated.
LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw. STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT – 39-15/16″ from floor standard. May be varied as situation dictates. R
EVERSIBLE – Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED – Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES – 605, 606, 612, 613, 625, 628, 630
Attributes
Manufacturer surcharge: 7.0%
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Base Material: Bronze
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Rim
Door Material: All Types
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 36″
Electric Options: Electric Latch Retraction
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Field Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Storeroom
Mechanical Options: Fire Rated
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2100 Series Apex Rim Exit Devices
Strike Standard: S300
Subtype: Rim Exit Devices
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
