PHI E2103 4908A 630 36 RHR Grade 1 Rim Exit Device Instructions
PHI E2103 4908A 630 36 RHR Grade 1 Rim Exit Device offers unparalleled reliability and style for commercial applications. Designed for high-traffic areas, this Grade 1 exit device features a wide stile pushpad and a storeroom function, ensuring ease of use without compromising security. The device is equipped with hex key dogging and an electric lever trim, making it versatile for various access control needs. With a satin stainless steel finish, the E2103 not only meets aesthetic demands but is also built to last. It conforms to ANSI A156.3 Grade 1 standards and is UL listed for panic and fire hardware, making it suitable for hospitals, schools, and other public buildings. The device is reversible and accommodates doors ranging from 1-3/4″ to 2-1/4″ in thickness and up to 3′-0″ in width, easily fitting into a variety of architectural designs. Additionally, the stainless steel deadlocking latchbolt provides a robust level of security with a 3/4″ throw, while the investment cast steel chassis ensures durability. The PHI E2103 is a reliable choice for anyone seeking a high-performance exit device that combines functionality with a sleek design, making it an essential component of any commercial door hardware system.
Grade 1 Rim Exit Device

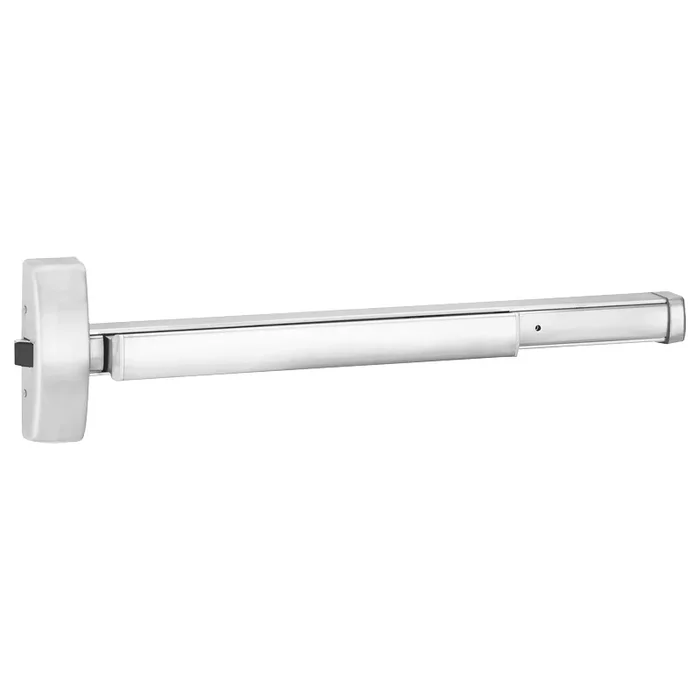

Grade 1 Rim Exit Device, Wide Stile Pushpad, 36″ Device, Storeroom Function, A Lever, Hex Key Dogging, Electric A Lever Trim, Satin Stainless Steel Finish, Right Hand Reverse
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
DOORS – For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS – Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER – Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS – Investment Cast Steel, Zinc Dichromated.
LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw. STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT – 39-15/16″ from floor standard. May be varied as situation dictates. R
EVERSIBLE – Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED – Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES – 605, 606, 612, 613, 625, 628, 630
Attributes
Manufacturer surcharge: 7.0%
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Design A: A Lever
Device Length: 36″
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: All Types
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 3′
Electric Options: Electric Lever Trim
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/4″
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2100 Series Apex Rim Exit Devices
Strike Standard: S300
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 10C
