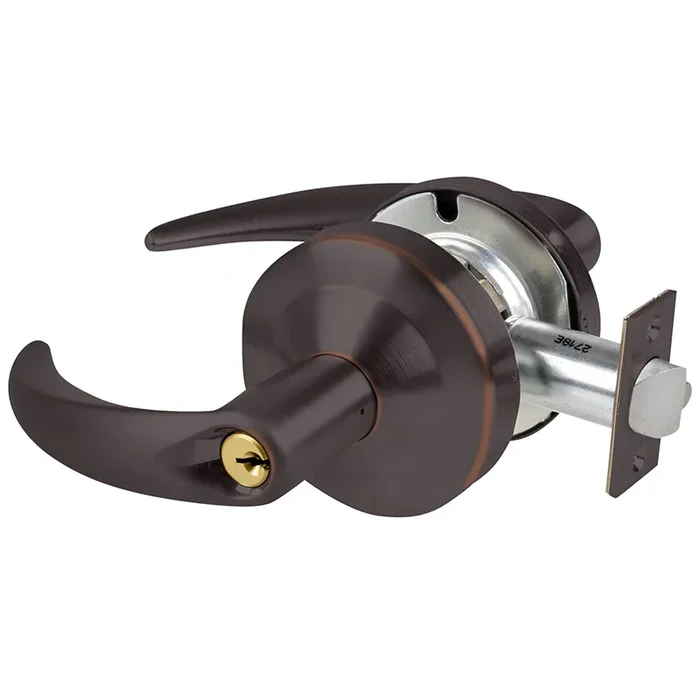

Schlage ND66PD OME 643E Lock Cylindrical Lock
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
- Store Lock, Key In Either Lever Locks or Unlocks Both Levers
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F91 – Store Door
Ansi Function : Store Door
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Design: Omega
Door Thickness: 1-5/8 In. – 2-1/8 In.
Finish: 643E/US10B
Finish : Aged Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 66-Store Lock
Function Family: Store
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: OME – Omega
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: Omega
Leverknob Design: OME – Omega Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Store Lock
Manufacturer Function : Key in either lever locks or unlocks both levers.
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Pbs Options: ‘4541274,4541421
Pins: 6
Product Height: 3.44″
Projection: 3-5/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Combination
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: P
Structure Function: 66
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 643e
Structure Outside Trim: OME
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
