Description

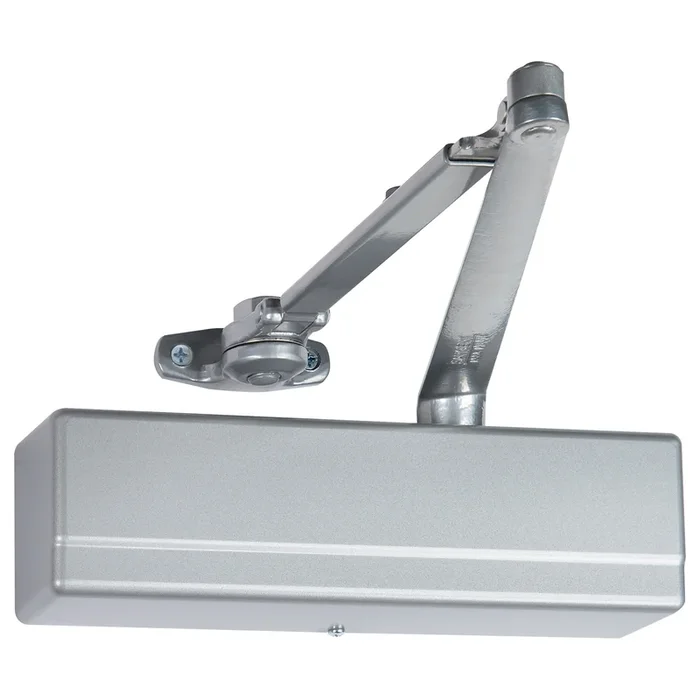

Sargent 1431-UH TB EN Grade 1 Surface-Mount Door Closer
Sargent 1431-UH TB EN Grade 1 Surface Mount Closer offers an exceptional balance of durability and flexibility, making it an ideal choice for both interior and exterior door applications. This surface door closer features a universal hold open arm and is constructed with high-quality sprayed aluminum enamel, ensuring longevity and an attractive finish. Designed with the needs of architects and building owners in mind, the 1431 Series exceeds 15 million cycles and is certified ANSI/BHMA A156.4 Grade 1, promising reliable performance. With adjustable spring power ranging from size 1 to 6, this closer is factory set to size 3 for optimal convenience. The non-handed design allows for versatile installation options, including standard, top jamb, and parallel mounts, while self-sticking templates simplify the installation process. It is also UL 10C listed for positive pressure fire tests and suitable for use on fire-rated doors. The 1431’s innovative features include an adjustable back check, a 1-1/2″ diameter piston for superior door control, and an all-weather fluid that ensures effective operation in extreme temperatures. Backed by a 25-year limited warranty, the Sargent 1431-UH is an excellent choice for both commercial and residential applications, providing peace of mind and exceptional functionality.
Grade 1 Surface Mount Closer
Surface Door Closer, Universal Hold Open Arm, Thru Bolts, Sprayed Aluminum Enamel
The 1431 Series is a complete line of aluminum surface door closers for interior and exterior doors with flexibility to meet virtually every application. A full compliment of arms and mounting accessories, with front facing valves make installation and maintenance easy.
ADA compliant except Push Side Track application.
The 1431 Seriesof surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.
• Exceeds 15 Million cycles
• Certified ANSI/BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL / cUL listed for use on fire rated doors
• 25 year limited warranty
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications
• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications. All 1431 are non-handed
• Meets ADA requirements in all applications, except Push Side Track application (except track)
•High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2″ diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse
• Retrofits existing SARGE
Attributes
Arm Type: Double Lever Arm, Friction Hold Open
Back Check: Adjustable
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Plastic
Degree Hold Open: Adjustable
Delay: No
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Pack Height: 4.25″
Pack Length: 15″
Pack Qty: 1
Pack Volume: 318.75 in³
Pack Width: 5″
Series: 1431 Surface Door Closers
Ship Weight: 9.8 lbs.
Subtype: Surface Closers
Through Bolts: Yes
Type: Surface
Unit of Measure: Each
Upc: 49306695077
