Description

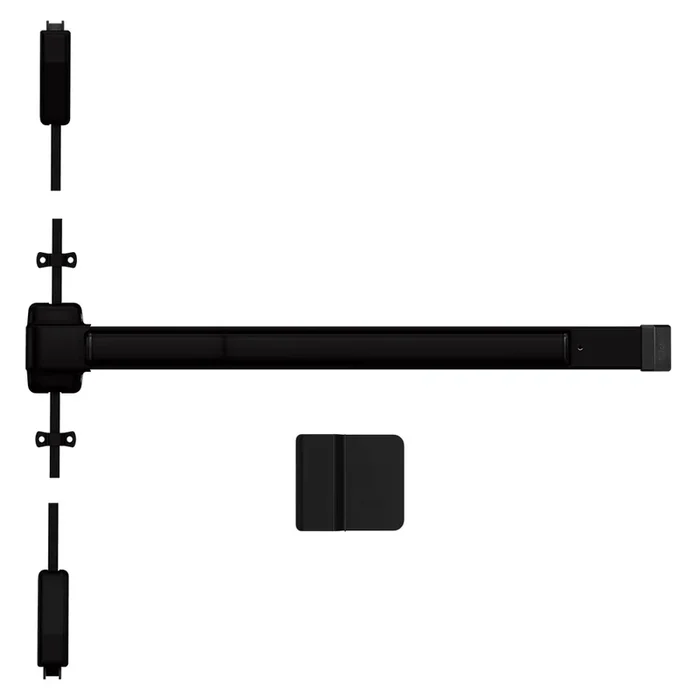

Von Duprin 2227DT 3 695 Grade 1 SVR Exit Bar Model SP313
Von Duprin 2227DT 3 695 Grade 1 SVR Exit Bar SP313 offers a reliable solution for securing commercial spaces with its Grade 1 surface vertical rod exit device. Designed to accommodate 84″ doors, this 36″ device is suitable for both single and double door applications, making it versatile for various entryways. The device features a dummy function and includes a wing/finger pull for easy access, while hex key dogging provides added convenience when securing the door. Constructed to fit door stiles as narrow as 3 5/8″ (92 mm), the 2227DT is non-handed, allowing for flexible installation. Its dark bronze painted finish not only enhances durability but also adds a touch of elegance. The UL listing for panic exit hardware ensures compliance with safety standards. With ANSI A156.3 certification, this exit bar is built for exceptional performance. The anti-friction deadlocking latch bolt delivers secure locking, and the device functions in multiple modes including EO, DT, NL, and more. Installation is straightforward, and it is designed for commercial use, making it an ideal choice for business owners seeking reliable door security solutions. Ensure your space is both secure and accessible with the Von Duprin 2227DT exit device.
Grade 1 SVR Exit Bar SP313
Grade 1 Surface Vertical Rod Exit Bar, 36″ Device, Fits 84″ Door, Dummy Function, Wing/Finger Pull, Hex Key Dogging, Dark Bronze Painted Finish, Field Reversible
2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.
UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3′ (914 mm),4′ (1219 mm)
- Door height: 7′ (2134 mm) standard door height extension rods available for door heights up to 10′ (3048mm) 12″ (205 mm), door height 36″ (914 mm), door height
- Device centerline from finished floor: 39 13/16″ (1011 mm)
- Center case dimensions: 4 1/4″ (108 mm) x 1 3/8″ (41 mm) x 2 3/8″ (60 mm)
- Mechanism case dimensions: 2″ (51 mm) x 3 3/4″ (95 mm)
- Projection push bar: Push bar neutral – 3 3/4″ (95 mm) Push bar depressed – 3″ (76 mm)
- Door undercut: 1 /4″ (7 mm) from finished floor recommended , 3 /4″ (19mm) maximum or 1 /8″ (3mm) from threshold
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8″ (16 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood & metal doors. Optional SNB available for device.
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 25.875 – 36″
Finish: 695
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Dummy
Minimum Stile Size: 3-5/8″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 36.75″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1929.38 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 4.25″
Product Length: 33.13″
Product Width: 3.75″
Restrictions: No
Reversible: Yes
Series: 2227 Series Surface Vertical Rod Exit Device
Ship Weight: 17 lbs.
Strike Bottom: 304L & 248L-4
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Wing/Finger Pull
Trim Part No: 210DT 695
Trim Type: Pull
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 2227 & 2227-F K, L, & TP Series Wood Door Template
- 2227 Series Vertical Rod Exit Device Service Manual
- 2227 Surface Vertical Rod Exit Device Service Manual
- EL for Exit Devices Data Sheet
- Von Duprin 22 ALK Alarm Kit Installation Instructions
- Von Duprin 2227 Surface Vertical Rod Device Installation Instructions
- Von Duprin Finishes Chart
