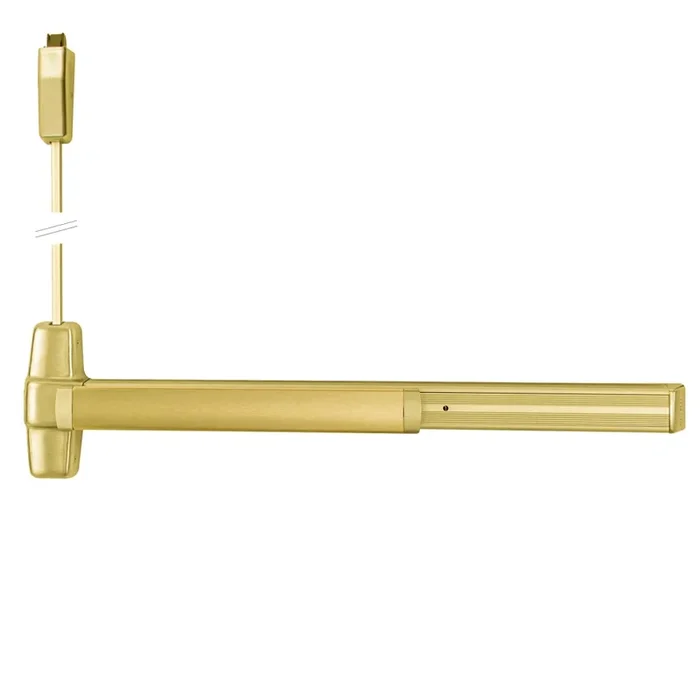

Von Duprin 9927EO 4 US4 LBR Grade 1 SVR Exit Device 606
Von Duprin 9927EO 4 US4 LBR Grade 1 SVR Exit Device 606 offers an exceptional solution for high-traffic environments requiring reliable panic exit hardware. Designed as a Grade 1 surface vertical rod exit bar, it features a wide stile pushpad and accommodates door heights of up to 84 inches with a robust 48-inch panic device length. This exit device is UL listed for safety and certified to ANSI/BHMA A156.3 2014, ensuring it meets stringent commercial standards. The 9927EO model is engineered for versatility, suitable for all types of single or double doors, and can be easily field-reversed for right or left-hand applications. With hex key dogging, security is enhanced while maintaining ease of use. The deadlocking anti-friction latch bolts provide a 5/8-inch throw, ensuring a secure closure. Installation is straightforward, with included fasteners compatible with doors ranging from 1-3/4 inches to 2-1/4 inches thick. This device is designed to fit hollow metal doors with standard 86 or 161 cutouts, making it highly adaptable. Finished in a satin brass (606) for an elegant look, the Von Duprin 9927EO combines durability with style, making it an ideal choice for commercial applications.
Grade 1 SVR Exit Device 606
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Panic Device, 84″ Door Height, Exit Only, Less trim, Less Bottom Rod, Hex Key Dogging, Satin Brass Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 34″ – 48″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
