Description

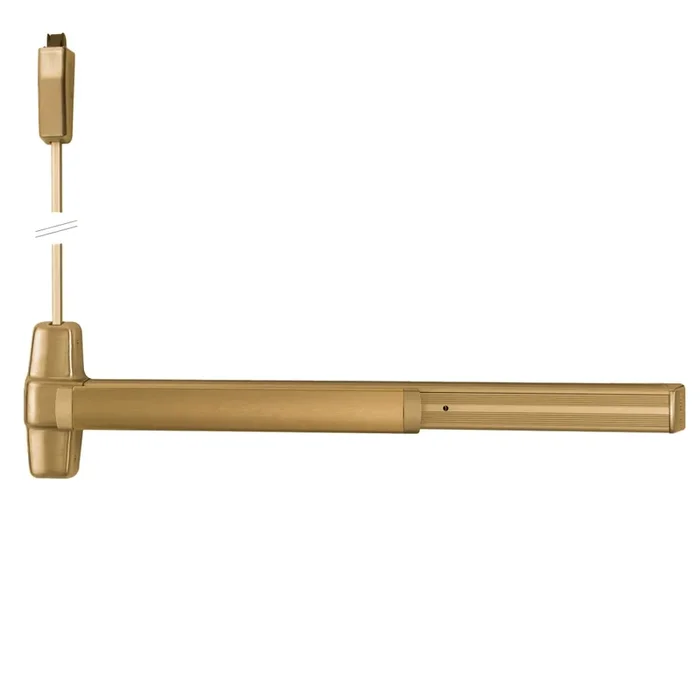

Von Duprin 9927EO 4 US10 LBR Grade 1 SVR Exit Device 612
Von Duprin 9927EO 4 US10 LBR Grade 1 SVR Exit Device 612 is a robust and reliable solution for high-traffic environments, designed to meet the strict demands of safety and accessibility. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is suitable for 84″ doors, providing a seamless exit solution for single or double doors. The device boasts a 48″ panic bar and is UL listed for panic exit hardware, ensuring compliance with safety standards. Its durable satin bronze clear-coated finish not only enhances aesthetics but also offers protection against wear and tear. The field-reversible design allows for versatile installation, accommodating various door configurations. Engineered to fit doors with 86 or 161 cutouts, the 9927 series features a smooth mechanism case and is certified to ANSI/BHMA A156.3 2014, Grade 1. The deadlocking anti-friction latch bolts provide a reliable locking mechanism, while hex key dogging ensures easy operation. The vertical rods, constructed from ½” square tubing, support doors over 7′ with optional extension rods available for even taller installations. With a limited 3-year warranty and a focus on commercial applications, the Von Duprin 9927EO is your go-to exit device for dependable safety and functionality.
Grade 1 SVR Exit Device 612
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Panic Device, 84″ Door Height, Exit Only, Less trim, Less Bottom Rod, Hex Key Dogging, Satin Bronze Clear Coated Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 34″ – 48″
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 10 Things You Need to Know About the Von Duprin Chexit
- 98/9927 Installation Instructions
- 98/9927 Surface Vertical Rod Exit Device Service Manual
- 98/9927-F-LBR Series Wood Door Template
- 9927 Latch & Strike Templates
- Chexit (CX) Data Sheet
- HH98/9927 & HH98/9927-F Installation Instructions
- Introduction to Von Duprin Exit Devices
- QEL 98/99 Baseplate Conversion Series Installation Instructions
- QEL Conversion Kit for 98/99 Series Installation Instructions
- QEL Data Sheet
- QEL Sell Sheet
- Quiet Electric Latch FAQ
- Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
- Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
- Von Duprin 33/99 LD Kit Installation Instructions
- Von Duprin Exit Alarm Kit Sell Sheet
- Von Duprin Finishes Chart
- Von Duprin Pneumatic Exit Device Installation Instructions
- Von Duprin WS9827/WS9927 & WS9827-F/WS9927-F Windstorm Exit Device Installation Instructions
