Description

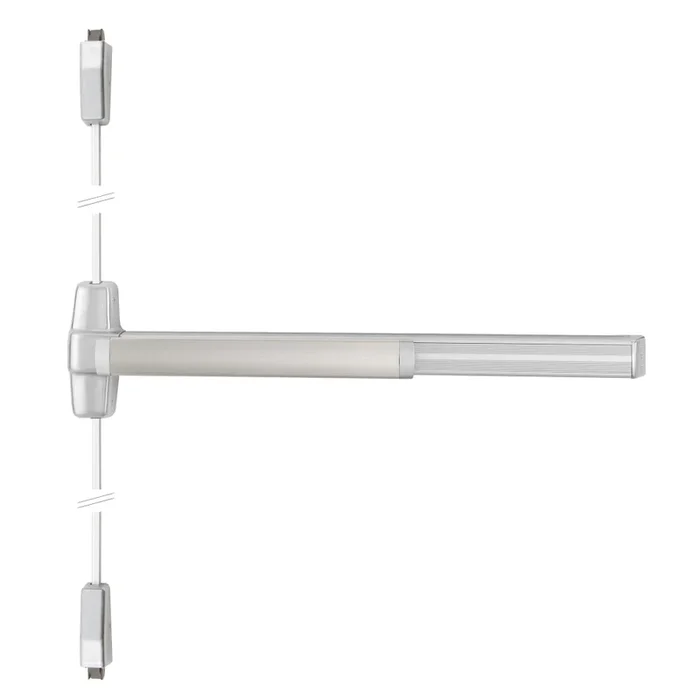

Von Duprin CXA9927EO 3 26D RGO Grade 1 SVR Exit Device 626
Von Duprin CXA9927EO 3 26D RGO Grade 1 SVR Exit Device 626 is a robust solution designed for high-traffic environments, ensuring security and safety without compromising on ease of use. This Grade 1 Delayed Egress Exit Device features a surface-mounted vertical rod system, making it ideal for applications in behavioral health, memory care, and retail spaces where asset protection is paramount.The device is equipped with rod guards and boasts a satin chromium plated finish, enhancing its durability while maintaining a sleek aesthetic. With a 15-second delayed egress feature, it effectively prevents unauthorized exits, making it suitable for sensitive settings. It integrates seamlessly with access control, fire prevention, and infant protection systems, offering versatile functionality. Constructed to accommodate doors ranging from 3′ to 4′, the CXA9927EO can handle the demands of various door sizes and materials, including metal and wood. The device’s anti-friction latch bolt ensures reliable operation, while the non-handed design allows for easy installation.With dimensions that include an 8″ x 2 ¾” center case and a projection of 3 13/16″ when neutral, this exit device is engineered for optimal performance. Choose the Von Duprin CXA9927EO for a dependable and efficient exit solution that prioritizes safety.
Grade 1 SVR Exit Device 626
Grade 1 Delayed Egress Exit Device, Surface Vertical Rod, Exit Only, Rod Guards, Satin Chromium Plated Finish
The Von Duprin CHEXIT is a delayed egress option available on all 98/99, 98/99XP and 33A/35A series exit devices. It is commonly used in behavioral health, memory care, and maternity applications to prevent patient abduction or elopement and in retail stores for asset protection. All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained. The CHEXIT can easily be integrated with access control, fire prevention and infant protection systems.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Add On Options: Rod Guards
Base Material: Brass or Bronze
Commercial Residential: Commercial
Device Length: 36″
Device Type: Surface Vertical Rod
Door Height: 84 In.
Door Material: Metal or Wood
Door Thickness: 1 3/4 In. – 2 1/4 In.
Door Width: 28 In. – 36 In.
Electric Options: Delayed Egress Device 15 Seconds
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Non-Handed
Includes Trim: No
Installation: Commercial
Mechanical Function: Exit Only
Minimum Stile Size: Wide
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Strike Bottom: 304L
Subtype: Delayed Egress Exit Devices
Top Strike: 299 / 248L-4
Type: Exit Devices
Unit of Measure: EACH
Unit of Measure 2: CASE
Unit of Measure 2 Qty: 2
