Description

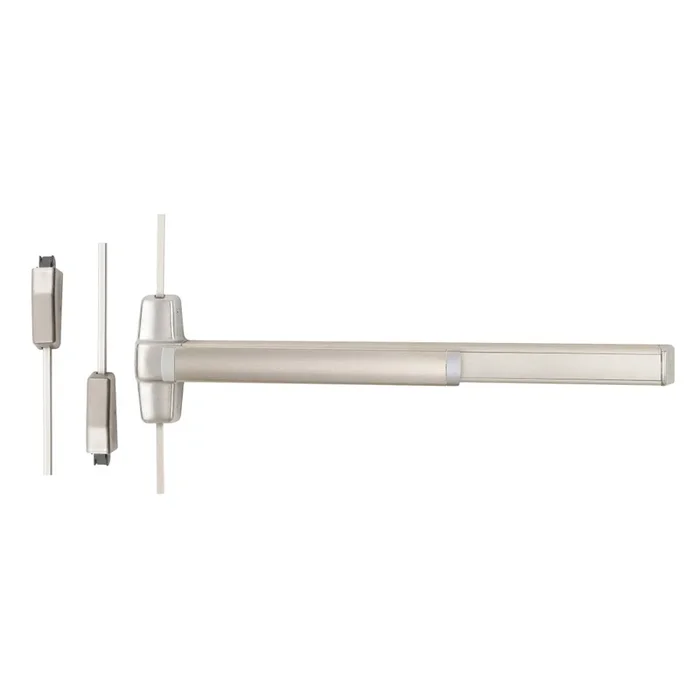

Von Duprin QEL9827L-NL-06 3 32D LHR Grade 1 SVR 630 Exit Device
Von Duprin QEL9827L-NL-06 3 32D LHR Grade 1 SVR Exit Device 630 offers exceptional reliability and security for commercial applications. This Grade 1 surface vertical rod exit device features a robust wide stile pushpad design, ensuring ease of use during emergency exits. Designed for doors up to 84 inches in height, the device incorporates a night latch function and a sleek satin stainless steel finish, making it both functional and aesthetically pleasing. The QEL9827 is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014 Grade 1 standards, ensuring compliance with industry regulations. Compatible with all types of single or double doors, it covers standard hollow metal doors with 86 or 161 cutouts. The motorized latch retraction provides seamless operation, while the less dogging feature adds convenience for users. With field-reversible handing and adjustable lengths for various door sizes, installation is straightforward. The top and bottom latch bolts are deadlocking and anti-friction, providing enhanced security. Designed with durability in mind, the device is suitable for high-traffic areas, ensuring safety and peace of mind. Trust the Von Duprin QEL9827L-NL-06 for a dependable exit solution that combines functionality and style.
Grade 1 SVR Exit Device 630
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Panic Device, 84″ Door Height, Night Latch Function, 06 Lever with Escutcheon, Motorized Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2″ (610 mm) Door size (shipped less UL label) 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: All Types
Door Thickness: 1-3/4″
Door Width: 28″ – 36″
Electric Options: Motorized Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-06-R/V 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 10 Things You Need to Know About the Von Duprin Chexit
- 98/9927 Installation Instructions
- 98/9927 Surface Vertical Rod Exit Device Service Manual
- 9827 Series Surface Vertical Rod Exit Device Cut Sheet
- 9827/9927 & 9827-F/9927-F NL, TP, K, & L Series Wood Door Template
- 9927 Latch & Strike Templates
- CX9827/9927 & 9827-F/9927-F NL, TP, K, & L Wood Door Template
- Chexit (CX) Data Sheet
- EL, SS 9827/9927 Series Device Hinge Stile Preparation Wood Door Template
- HH98/9927 & HH98/9927-F Installation Instructions
- Introduction to Von Duprin Exit Devices
- QEL 98/99 Baseplate Conversion Series Installation Instructions
- QEL Conversion Kit for 98/99 Series Installation Instructions
- QEL Data Sheet
- QEL Sell Sheet
- Quiet Electric Latch FAQ
- Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
- Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
- Von Duprin Exit Alarm Kit Sell Sheet
- Von Duprin Finishes Chart
- Von Duprin LD Cover Plate for 33/35 & 98/99 Exit Devices Installation Instruction
- Von Duprin Pneumatic Exit Device Installation Instructions
- Von Duprin WS9827/WS9927 & WS9827-F/WS9927-F Windstorm Exit Device Installation Instructions
